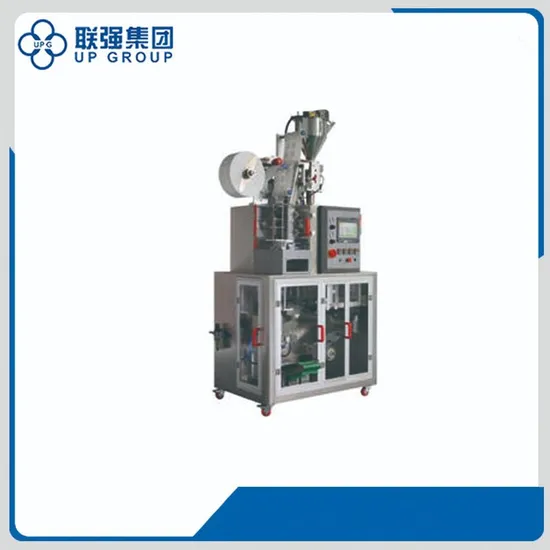

LQ-DC-2 High Level Drip Coffee Packaging Machine

Product Description

Product Description It is the latest design based on the general standard model, specially design for different kinds of drip coffee bag packing, such as standard drip coffee, non woven drip coffee bag and VFR drip coffee bag. The inner bag part of machine adopts fully ultrasonic sealing. Compared with the heating sealing it has the better packaging performance. Besides, with the special weighing system: slide doser, it effectively avoided the waste of coffee power. Product Parameters

Machine Name	Drip Coffee Packaging Machine
Working speed	About 50 bags/min
Bag size	Inner bag: Length:90mm * Width:70mm Outer bag: Length:120mm * Width:100mm
Sealing method	Fully 3-side ultrasonic sealing 3-side heating sealing
Weighing system	Slide Doser
Weighing arrange	8-12grams/bag (Based on the material's proportion)
Filling accuracy	±0.2 grams/bag (Depend on the coffee material)
Air Consumption	≥0.6MPa, 0.4m3/min
Power	220V,50Hz,1Ph
Weight	680kg
Overall dimensions	1400mm*1060mm*2691mm

Compare between standard and high level machine

Standard machine	High level machine
Speed:about 35 bags/min	Speed:about 50 bags/min
Air pressure meter Human observes	Automatic air pressure detecting device When low air pressure, alarm
Outer air blowing system Avoid the problem of "wrinkle"	Different outer bag sealing device Without pulling film wheels Without wrinkle caused by pulling film wheels
/	No-coffee alarm
/	No-outer/inner packing material alarm
/	Empty inner-bag alarm

Company Profile
Superiority
Our Customers
Exhibitions
Our Services Pre-sales Service
We provide all information and materials of our products to the valuable customers and partners so as to support their business and development. We also will give a preferential price for the first few machines, the samples for the printing, packaging and consumables are available, but the freight should be borne by the customers and partners.
In-sales Service
The delivery time of the ordinary equipment is generally 30-45 days after receipt of deposit. The delivery time of the special or large scale equipment is generally 60-90 days after receipt of the payment.
After-sales Service
The quality guarantee period of the product is 13 months after leaving the Chinese port. We can provide customers with free installation and training, but the customer is responsible for round-trip tickets, local meals, accommodation and engineer allowance.
If the product is damaged due to customer's incorrect handing, the customer should bear all the costs including the costs of spare parts and freight charges etc. During the warranty period, if it is damaged caused by our manufacturing failure, we will provide all repair or replacement free of charge.
Other Service
We can design special products according to customer's requirements on various aspects, including style, structure, performance, color etc. In addition, OEM cooperation is also welcome.
