Textile Stenter Machine for Textile Finishing Process Use Gas Heating System
| US$100,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XLC-2600
Material
Cotton Fabric
Voltage
380V
Load Capacity
>2000kg
Certification
ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
Heating Mode
Natural Gas/Conduction Oil/Steam
Application
Textile Fabric Finishing
Production
5-100m/Min
Chamber
4-15
Fabric Holding Type
Pin Plate/Clip
Temperature
60~250°
Function
Drawing and Shaping
Frequency Converter
Mitsubishi
Winding Mode
Customized
Padder
Customized
After Warranty Service
Video Technical Support, Online Support
Product Name
Textile Stenter Machine
Transmission Mode
Horizontal Oven, Needle Plate Stretching Type
Nominal Working Width
1600-3200mm According to User Requirements
Device
AC Frequency Conversion Synchronous Drive
Transport Package
Container Transport
Specification
10000*3000*2500mm
Trademark
XinYi
Origin
China
HS Code
8451800003
Production Capacity
10 Set/Sets Per Month
Product Description

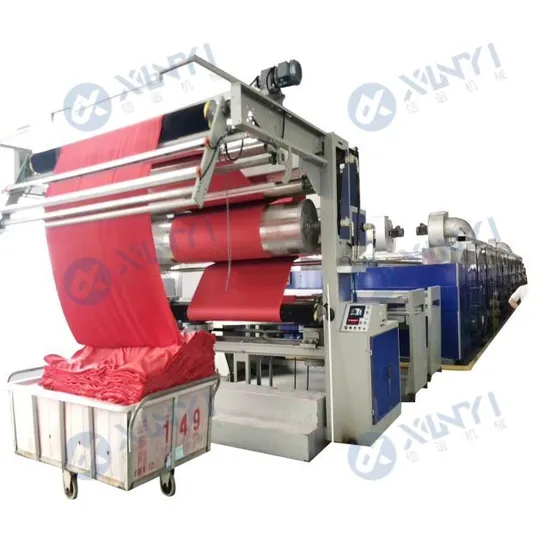

XLC Series Tension setting machine
Elliptical circulation fan box, high efficiency and energy saving
Textile stenter machine for textile finishing process use gas heating system
Multi purpose stenter for drying, heatsetting, width setting and curing of various types of fabrics and nonwovens.
Successful Project
Manufacturing Technique
PRODUCT SPECIFICATIONS Improved Width control ability:The front width,total width,and rear width are controlled by differonmotors. Excellent performance is exhibited for brushed fabrics and curtain fabrics receivinaexcessivetension along the width as well as PK,PQ,and LYCRA,which reduce the tension along the width LnParticular,when the seagull phenomenon occurs,the width can be selectively controlled by each motor1,2,and3 chamber.
| No | Item | Data | |
| 1 | Power | 250KW | |
| 2 | Machinety vehicle speed | 100/min,Heating room 8 chambers | |
| 3 | Operating weight | 40Ton | |
| 4 | Heat type | gas, use Riello Burner of Italy | |
| 5 | Nominal working width | 1800-3200mm |
Exhibition
The 300 square meter booth fully reflects the strength of the factory.The company always adheres to the enterprise policy of "specialization comes from concentration,concentration is more professional", adheres to achieving high quality and high output with low energy consumption, and creates greater efficiency for you.
Company Profile
Focus on the R & D, production and sales of textile machinery and equipment such as stenter and setting machine
Established in 2002, Wuxi Xinyi Machinery Co., Ltd. has been focusing on the R & D, production and sales of textile machinery and equipment such as stenter and setting machine for many years. At present, the company has 200 employees, 20% of whom are scientific and technological personnel. The company covers an area of 50000 square meters, with a construction area of 50000 square meters
