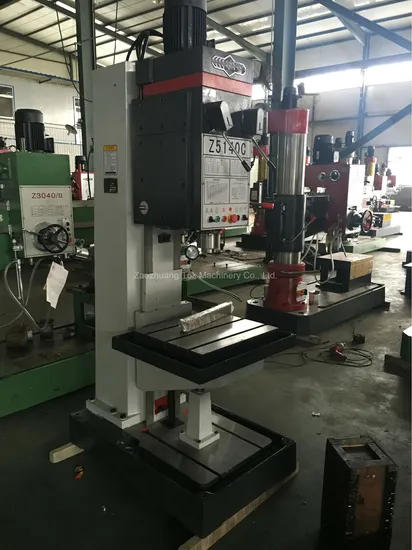

Square Box Drilling Press Z5140b
| US$4,100.00-6,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5140B
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max Drilling Diameter
40mm
Spindle Taper
Mt4
Spindle Box Travel(Manual)
200 mm
Spindle Speed Steps
12
Spindle Speed Range
31.5~1400 Rpm
Table Size
560 X 480 mm
Vertical Travel
300mm
Main Motor Power
3kw
Spindle Travel
250 mm
Function
Self Screwing Device
Transport Package
1090X905X2465 mm
Specification
1250kg
Trademark
tokmc
Origin
Shandong
HS Code
84592900
Production Capacity
100 Sets/ Years
Product Description
steel drilling machine / universal drilling machine /self drilling screw machine Square column vertical drilling machine witha versatile application Tap-automatical recersing device Manual lift table Cross table used in Z5140B-1 Z5150B-1| Specification | Unit | Z5140B | Z5140B-1 |
| Max drilling diameter | mm | 40 | 40 |
| Spindle taper | MT4 | MT4 | |
| Spindle travel | mm | 250 | 250 |
| Spindle box travel(manual) | mm | 200 | 200 |
| Spindle speed steps | 12 | 12 | |
| Spindle feed steps | 9 | 9 | |
| Spindle speed range | r.p.m | 31.5~1400 | 31.5~1400 |
| Table size spindle feed range | mm/r | 0.056~1.80 | 0.056~1.80 |
| Table size | mm | 560 x 480 | 800 x 320 |
| Longitudinal(cross)travel | mm | - | 450/300 |
| Vertical travel | mm | 300 | 300 |
| Max distance between spindle and table | mm | 750 | 750 |
| Main motor power | kw | 3 | 3 |
| Overall size | mm | 1090x905x2465 | 1300x1200x2465 |
| Net weight | kg | 1250 | 1370 |
