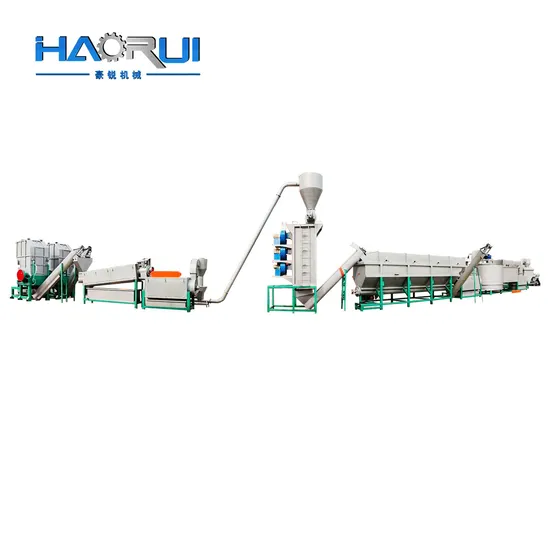

High-Efficient Waste Pet/HDPE Bottles PE PP Film/Woven Bags Recycle Plastic Machine Bottle Rigid Flakes Washing and Recycling Line

Product Description

High-Efficient Waste Pet/HDPE Bottles PE PP Film/Woven Bags Recycle Plastic Machine Bottle Rigid Flakes Washing and Recycling Line Product Description
This recycling machine is suitable for PP HDPE LDPE PET PS ABS PVC diry plastic , especially oil container, bottles with label
including sorting ,crushing ,washing(cold and hot washing) drying, bagging process
Our advantage:
1. Long manufacturing history over 30years.
Our factory was established in 1992. Over 30 years experience,we can give customers a professional solution, help customer avoid investment mistake and reduce learning cost. 2. R&D engineer Team
Based on our excellent R&D engineers,we keep improving our machines, insure our machines newest technology ,and machines excellent performance with customers. 3. We always keep the principle "quality is first".
We promise to use all new technology,new material ,enough thickness to keep the good quality, grantee is 1 year. 4. 100+ Workers and 30000m2 factory
We are 100% end manufacturer, all machines from first metal cut to final painting , all process are finished in our own factory ,so we can provide most competitive price and short delivery time.Small capacity line within 25days, big capacity line within 50days. 5. 13 patent certifications
We keep improving our technology, we have our own PET bottle recycling factory in China and use our machines,So we know what problem the machines have during working and keep improving it and get 13 patent certifications,We do good business in China and created famous "HAORUI"brand.
6.OEM and Export
OEM or Agent is welcomed.And over 40 sets of PET bottle washing line(four 6000kg/h capacity in Nigeria ,Ghana etc), PP PE HDPE LDPE washing line ,pelletizing machine were installed in Middle East,Africa,South America,South East, South Asia ,USA and so on, created Famous "HAORUI" brand in Africa.
Detailed Photos
Produce in workshop
All items and all process from first metal cut to final painting , all finished in our own factroy , quality inspection after every process,we can guarantee good quality and short production time.
Product Parameters

SN:	Item name:	Function
1	Bale Opener machine	Open the bottle bale
2	Conveyor belt	Feeding material
3	Trommel screen	Remove the sand, rocks and other dirty from the bottles
4	Conveyor	Feeding material
5	Manual sorting table	Sorting out different plastic
6	Conveyor belt	Feeding material
7	Crusher	Crushing the bottles into flakes
8	Screw loader	Conveying material
9	1st Auto floating washing tank	Washing out the Floating caps, rings and dirty
10	Screw loader	Conveying material
11	2nd Auto floating washing tank	Washing out the Floating caps, rings and dirty
12	Screw loader	Conveying material
13	Hot washing tank	With Hot water washing and chemical to remove glue, oil, and dirty
14	Screw Loader	Conveying material
15	High Speed Friction washer	With high speed Friction Washing out dirty and Chemical water from flakes
16	3rd Auto floating washing tank	Washing out floating caps, rings and dirty,
17	Screw loader	Conveying material
18	4th Auto floating washing tank	Washing out the Floating caps, rings and dirty
19	Screw Loader	Conveying material
20	Horizontal Dewatering Machine	Drying the flakes
21	Hot Air Drying system	Drying the flakes again
22	Zig-Zag label separator	Remove the dust and small remain labels
23	Automatic packing system	Collecting the flakes
24	Electric control panel	Used to control the whole Line
25	Free spare parts
PP PE bottle washing/recycling line/machine can be customized according to customer requests.

The final produces are clean and dry flakes (without label), moisture for rigid mterial is below 2%
can go to pelletizer directly.
After Sales Service
1.Machines guaranteed at least 1 year.
2.Provide installation instruction.
3.Engineer avaliable to go to customer factory to install and train workers.
