Steel Pipe 3lpe 3PE Fbe Vus Insulation Anticorrosion Coating Line

Product Description

Steel Pipe 3LPE 3PE FBE VUS insulation anticorrosion Coating line
Product Description
Steel pipe anti-corrosion coating line is used for anti-corrosion coating steel pipe in the factory with various diameter, which is more widely used in varieties of engineering construction, especially in the heating, gas, oil field.
The lines can be applied to FBE, 2 layer FBE, 2 layer PE, 2 layer PP and 3 layer PE anti-corrosion coating.
3 layer PE anti-corrosion coating consists of first FBE coating, middle adhesive layer and outer polyethylene layer.
Steel pipe 3LPE anti-corrosion coating line
(Dia. 159-4200mm)
Steel pipe internal external FBE coating line
(Dia. 500-4200mm) click for detail
Internal FBE external 3LPE coating line
(Dia. 159-4200mm) Click for details
Small size steel pipe O-type extrusion 3LPE coating line
(Dia. 57-426mm) Click for details

Steel Bend pipe FBE &3LPE coating Production Line click for detail
Application
The three-layer polyethylene anti-corrosion coating is advanced technology as the outer protective layer of buried pipe, widely used in the anti-corrosion of gas and oil transmission pipeline, urban gas supply, water supply pipe and other fluid transmission pipeline. 3 layer PE anti-corrosion coating can strengthen the pipeline's mechanical properties with high electrical resistance, waterproof, wearable and anti-aging performance.
Detailed Photos
The anti-corrosion coating processing line includes:
-steel pipe transmission system
-surface treatment system
-pipe dust removal system
-pipe heating system
-electrostatic spraying system
-coating system
-water cooling system
-end cutting system
-hydraulic and pneumatic system
-testing system
-electronic control system.
Technological processes
Upload pipes→pipes screw conveyor→rust removal → intermediate frequency heating→Epoxy powder coating→outer layer adhesive polyethylene coating→cooling spray→pipes screw conveyor→grinding pipe ends→dowload pipes
Our Advantages
-Adopt advanced technology
-Stable operation
-High degree of automation, saving labor costs
-Good anti-corrosion quality, meets international standard
-Supply full completed production solution: design, installation, commissioning,training
-Share you 389 sets of production experience from all the world
-Having 9 professional senior engineers
-Having a high-end plastic machinery equipment expert workstation in China
Main Equipment List

No.	Name	Set
A. Derusting Equipment
1	Pipe wheel conveyor	1
2	Shot Blasting Machine	1
3	Cyclone Dust Collector	1
4	Pulse dust collector	1
5	Centrifugal exhaust fan	1
6	Rust removal equipment PLC	1
B. Coating equipment
1	Pipe wheel conveyor	1
2	Induction heating device	1
3	Powder spraying device	1
4	Automatic loading dryer	2
5	SJ-65/30 Extruder	1
6	SJ-120/30 Extruder	1
7	Hot melt adhesive extruder die	1
8	PE sheet extruder head mold	1
9	Hot melt adhesive/PE sheet coating device	1
10	Environmental Protection Ventilation equipment	1
11	Cooling Spray equipment	1
C.Platform Equipment
1	Steel pipe uploading platform	1
2	Downloading platform	1
3	Pipe storage platform	1
4	Turnover machanism	3
D.Groove Equipment
1	PE Beveling Machine	2
2	Hydraulic Lifting and Turning Machinery	1
3	Hydraulic Equipment	1
4	PLC automatic control system	1

Product Parameters
1. Pipe diameter: 50-4200mm
2. Processing capacity: ≥250m2/h
3. Cleaning level: ≥Sa2.5
4. Materials for production: epoxy powder, adhesive, polyethylene

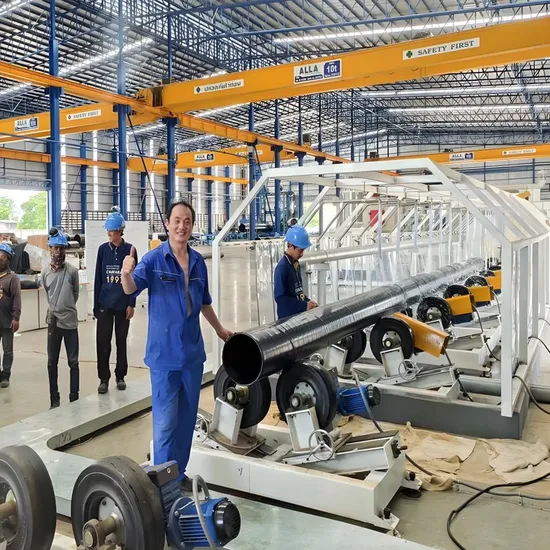

Customer cases
Company Profile
Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.

We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
