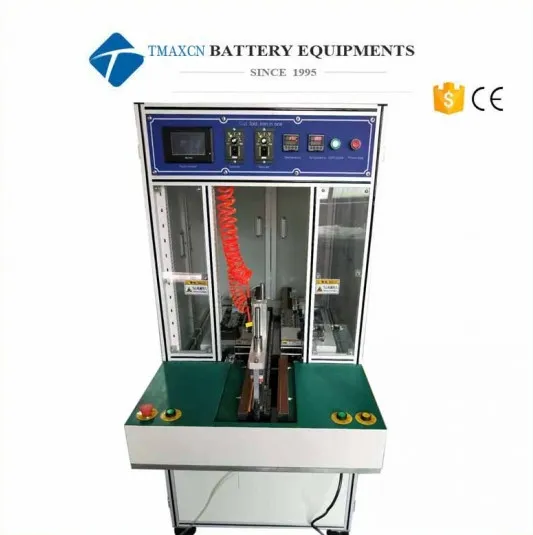

TMAXCN Brand Semi-Automatic Battery Edge Trimming Machine for Lithium Polymer Battery Production
| US$6,900.00-13,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TMAX300HH
Placing Form of Template
Horizontal
Die Cutting Tool
Metal Mold
Computerized
Non-Computerized
Automatic Grade
Semi-Automatic
Application
Insulating Materials
Transport Package
Wood Packing
Trademark
TMAX
Origin
China
Product Description
Semi-Automatic Battery Edge Trimming Machine for Lithium Polymer Battery Production
TMAX300HH is a three-in-one machine provides the continuous workflow for edge trimming, folding and ironing of extra large pouch cell cases without dedicated labor. This process is widely used in the final steps of pouch cell battery pilot-scale production line to ensure a smooth, neat and tidy casing edge.
Here is our product video link:
https://tmaxcn.en.made-in-china.com
Specification
| Ironing Module | |
| Trimming Module | |
| Folding Module | |
| Max. Power Consumption | 2.5KW |
| Working Voltage | 208-240 VAC, single phase |
| Compress Air Pressure | · 0.7 - 0.8 MPa (Each stroke will consume 0.09L air ) · Note:Air Compressor is not included. |
| Size Info (Edge Ironing, Trimming & Folding Width/Length) | · Cell length: 10~580mm · Cell width: 10~240mm · Cell thickness: 2~12mm |
| Temperature Info | Ironing Temperature: 0-250ºC adjustable |
| Dwell Time | 0-99 seconds adjustable |
| Productivity | 160~220 pcs / hr (Expected lifespan of Trimming blade ~ 1 million times) |
| Trimming accuracy | +/-0.1mm |
| Working Modes | · Continuous workflow for edge trimming, folding and ironing of extra large pouch cell cases (manual cases loading is needed) · Linear sliding rail for easy manipulation of trimming, folding and ironing modules. |
| How to use | When the pouch cell is fabricated, an uneven edging excess is expected. In order to make a neat and tidy cell with smooth edge just like the commercial pouch batteries, please follow the steps in below: Step 1. The trimming module will cut off the excess area of the casing edge, only leave the size appropriate for the edge folding and ironing Step 2. The ironing module will smooth the edge prior to the folding Step 3. The folding module will partially fold the edge Step 4. The ironing module will smooth the folded section again and then iron the longer section against the sides of the case. Now a neat and tidy cell is finished. |
| Product Dimensions | 2000X 850 X 1800 mm |
| Net Weight | 360Kg |
| Warranty | Two Years limited warranty with lifetime support. |
