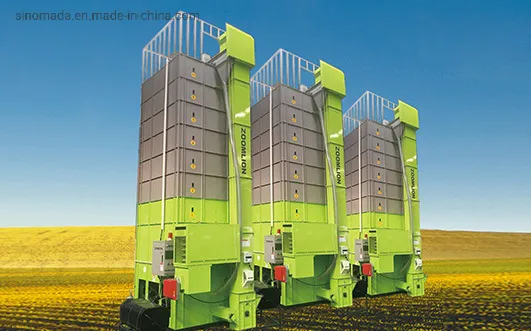

2020 New Zoomlion 6T Grain Dryer for Hot Sale
Product Description


Single layer with dry structure, hot air two in three out, thin layer dry, with compact structure, high drying efficiency and dry uniformcharacteristics.
Adopting the design of 1.2 thickness stainless steel plate , simple structure, high reliability and good corrosion resistance, greatly improve the service life of the product.
The low speed spiral conveying structure is designed to conveying capacity and low crushing.
Upper auger driving by belt of elevator motor with Simple structure, high transmission efficiency.
Adopting the low crushing bucket elevator, and increase our patented design of the anti-damage device to make the crushing rate lower.
Adopt 3kW inclined flow fan with the features of large air volume, high static pressure, stable operation, and low failure rate.
control system:
Optional choose the imported online cereal moisture meter which is accurate monitoring of moisture change to improve drying, and auto stop in case achieve safe moisture.
The transmission part increases the signal sensing device, monitors the state of the running process equipment in real time and alarming in case machine wrong.
Standard equipps calibrate grain temperature monitoring device to check the temperature change of grain in drying process and ensure the drying quality.

Product Parameters

model		unit	DC60	DC80
structure type		/	recirculating of batch type	recirculating of batch type
machine weight		kg	2650	2650
Batch type capacity	rice(0.56T/m3)	kg	8000	8000
capacity	(dropping extent 25 % to 15%)	kg/h	≥400	≥400
Overall dimension(L*W*H)		mm	3478 *3004 *6531	3478 *3004 *7076
heating model		/	direct heating/indirect heating
fuel		/	Diesel, rice hull, gas, biomass particles, etc
power	Rated Voltage	v	Three-phase 380V/50HZ/One-phase220V/60HZ/Three-phase220V/60HZ
	total power	kw	6.94	6.94
performance	feed time:rice/wheat	min	50~60/45~55	50~60/45~55
	unloading time:rice/wheat	min	45~55/40~50	45~55/40~50
	hot air temp	ºC	30~100	30~100
	rainfall rate	%/h	0.5~1.2	0.5~1.2
	drying capacity	t•%/h	≥3	≥3
	drying uneven rate	%	≤1	≤1
safety device		/	Wind pressure switch, hot air temperature sensor, abnormal overheat switch, thermal relay, circuit breaker, full alarm switch.
