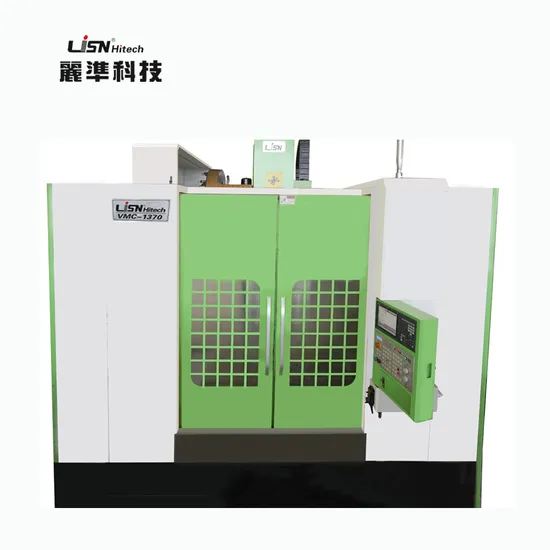

Vmc1370 3 Axis Vertical CNC Machine Center

Product Description

Product Description
The VMC-1370 is a high performance vertical CNC machining center which is suitable for various industries of parts processing, such as automotive industry, aircraft industry, parts manufacturing and 5G industry. The table size and load capacity are superior. The table size is 1400mm*700mm, and the maximum load can be up to 900kg. All castings of this machine have been secondary tempered which can provide extremely high rigidity and stability for the machine. It adopts Integrated bearing block design which can effectively improve the overall rigidity of the axial system and effectively avoid the rotation deformation of the screw. The major parts and accessories are imported from Taiwan or Europe and America. Excellent parts combined with our rich experience in assembly, each product has extremely high accuracy and excellent service life.

The performance of the spindle is also very excellent. The travel distance of XYZ axis are 1300/700/750mm. The motor and the spindle are connected by a highly rigid non-clearance coupling, which can reduce the motor loss and improve the mechanical efficiency. The Z axis adopts the brake motor system, which can maintain balance and sensitivity at the same time of rapid displacement, which can ensuring the machining accuracy. Three axis motor and precision high speed ball screw use direct drive, wihch can greatly saving non - processing time.

Main Features
Excellent load capability: 900kg Worktable size: 1400mm*700mm Maximum cutting feed speed: 1-7000RPM X/Y/Z positioning accuracy: ±0.008mm X/Y/Z re-positioning accuracy: ±0.005mm
Detailed Photos
Product Parameters

ITEM	MODELS	VMC1370
WORKTABLE (WIDTH*LENGTH)	mm	700*1400
DISTANCE BETWEEN T SLOTS	mm	5-18*152.5
MAX LOAD BEARING OF WORKTABLE	kg	900
X/Y/Z AXIS TRAVEL	mm	1300/700/750
DISTANCE FROM SPINDLE NOSE TOWORKBENCH	mm	150-800
SPINDLE HOLE TAPER		TB50
SPINDLE SPEED RANGE	r/min	8000
TRANSMISSION OF SPINDLE BOX	BELT/DIRECT	BELT/DIRECT
SPINDLE MOTOR POWER	kW	15
X/Y/Z RAPID FEED SPEED	m/min	24*24*18
MAX CUTTING FEED SPEED	mm/min	1-10000
TOOLS MAGAZINE CAPACITY	pcs	24
FULL TOOLS MAX TOOL DIAMETER	mm	240
MAX.TOOLS ALLOWABLE WEIGHT	kg	15
MAX.TOOLS ALLOWABLE LENGTH	mm	305
X/Y/Z POSITION ACCURACY	mm	0.008
X/Y/Z RE-POSITION ACCURACY	mm	0.005
MACHINE DIMENSION	mm	3630*2600*2640
MACHINE WEIGHT	kg	10000

Standard Configuration for VMC Series 1. Full Cover shield
2. Self-lubrication system
3. Working lights
4. Warning lights
5. Working condition warning lights
6. Self-powered electrical shutoff system
7. Clean air gun/ Water Tank / Transformer
8. Spindle air curtain and dust control system
9. 10000 RPM spindle
10.Worktable cleaning water gun
Optional Configuration for VMC Series 1. 24 disc manipulator tool magazine
2. Crawler chips remover
3. NC rotary table (4 Axis)
4. CTS
5. Tool detection system
6,. AJO
7. 12000 & 15000 RPM Direct connection spindle
8. Oil mist purifier
Company Profile

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.
