4 Axis CNC Carving Machine with Split Structure

Product Description

Item: iGW-MCS

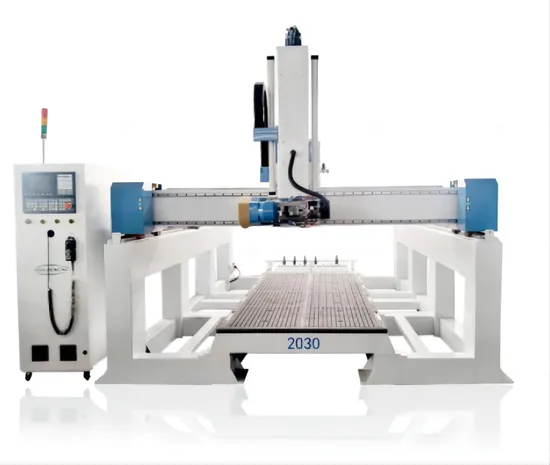

The split type polyfoam 3D CNC foam cutting machine is a CNC carving machine designed for foam processors who are subject to transportation, site restrictions or format restrictions, and is mainly used in the aviation industry, woodworking industry, craft gifts, film and television.
3D sculptures such as props, building models, electronics, CAD/CAM industrial molds.
The plug-in polyfoam 4 axis CNC foam Cutting machine is easy for transport, provide several configurations to meet different requirement, perfect for several kinds of foam and mould router, the innovation model combined with a competitive set of configurations.

Hot applications include:
>Carving all kinds of non-metal materials processing such as foam, lost foam, automobile foam mold, yacht mold, large ship wooden mold, cast wooden mold, engineering plastic materials, aviation wooden mold, propeller, train wooden mold, etc.

>Foam processing of automotive stamping molds, casting wood molds, automotive interiors, processing of engineering plastic materials;

>Other industry molds: electrical appliance molds, lighting molds, ceramic sanitary ware, three-dimensional curved surfaces for large musical instruments, instrument molds, home appliance molds, air-conditioning molds, automotive molds, automotive interior molds, etc.

Technical Data

X, Y Axis Working Area	mm	2000*3000/2000*4000
Z Axis Working Height	mm	400-1200 optioned
Positioning Accuracy	mm	0.05
Re-positioning Accuracy	mm	0.02
Body Structure		Welding Body
X, Y Axis Structure		Linear Guide Rail, Gear Rack
Z Axis Structure		Linear Guide Rail, Screw
Max. Running Speed	mm/min	50000
Max. Working Speed	mm/min	20000
Spindle	kw	9.0kw Air-cooling ATC Spindle(Optioned)
Spindle RPM	rpm/min	24000
Working Voltage	V/Hz	AC 380V±10%/50-60Hz
Machine Weight	kg	3000/3300

Configuration

Spindle	HQD Air-cooling Spindle (Italy HSD Spindle Optioned)	Machine Body	Split-type Welding Body, Fixed with Screw
Worktable	Iron Cast Worktable (Vac-sorb Worktable with T-slot Optioned)	Control System	Taiwan LNC System(Taiwan SYNTEC System Optioned)
Stepper Motor	Japan YASKAWA (Leadshine and Yako Optioned)	Frequency Converter	Taiwan DELTA
Gear Rack	Taiwan HIWIN	Reducer	Japan SHIMPO
Electric Components		Limited Switch	Japan OMRON
Tool Setting	High-precision Automatic Tool Setting Device (Optioned)	Lubrication System	Automatic Lubrication Device (Optioned)
