60L 120L 200L Brewing Equipment Mini Brewery Plant System Home Beer Making Machine

Product Description

60L 120L 200L Brewing Equipment Mini Brewery Plant System Home Beer Making Machine

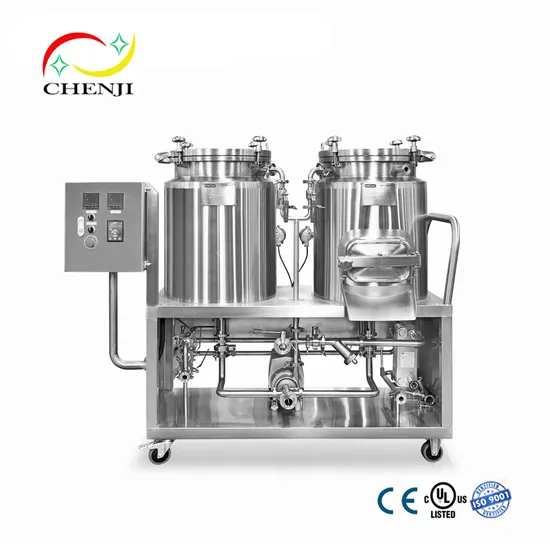

60L Home Brewery:
This type 60l beer brewery equipment includes two vessels brewhouse, 2 or 3*60l fementers, glycol water tank, chiller and control cabinet and fitting all necessary parts.
The 60l beer brewery machine is easy to operate, bottom with wheel, easy to move, it is suitable for home brewing / beer recipes test / pilot brewing etc.


120L Home Brewery:
This type 120l Home brewery equipment includes two vessels brewhouse, 3*120l fementers, glycol water tank, chiller and control cabinet and fitting all necessary parts.
120l home brewery produces small amounts of beer, typically much smaller than large-scale corporate breweries. It's easy to operate, suitable for home brewing, beer recipes test etc.

-New design for home brewery
-Fast and easy cleanup -Small size save space
-High configuration model
-REMOTE CONTROL

System	Name	Quantity
Mashing system	Mash tun/lauter tank	1pcs
	Boiler/whirlpool tank	1pcs
	Heat Exchanger	1pcs
	Wort pump	1pcs
	Pipelines, valves fitting	1pcs
	Platform with casters	1pcs
	Brewhouse controller	1pcs
Fermenting/cooling/ controlling system	Fermenter	2 or 3 pcs
	Glycol water tank	1pcs
	Glycol water pump	1pcs
	Chiller	1pcs
	Cabinet	1pcs
	controller	1pcs
	Pipelines, valves	1pcs
	Platform with casters	1pcs

Contact for Free Drawings and Quotations
Send Inquiry >>click to contact us now!!!
Brewery Equipment Configuration

Malt Milling System	Mill machine	Stainless steel/Carbon steel
	Grist case	Stainless steel
	Flexible conveyor	Outer PPR or Stainless steel
Brewhouse System	Mash tun	-Inner:3mm; outer:2mm -Motor agitation -Steam jackets/Electric elements/Fire direct heating
	Lauter tun	-Inner:3mm; outer:2mm -Rack system -False bottom filter
	Kettle tun	-Inner:3mm; outer:2mm -Steam jackets/Electric elements/Fire direct heating
	Whirlpool tun	-Inner:3mm; outer:2mm -Side tangent whirlpool inlet
	Hot water tank	-Inner:3mm; outer:2mm -Steam jackets/Electric elements/Fire direct heating
	Accessories	-Mash pump; Heat-exchange plate; Hop back system; Brewhouse Pipes;
Fermentation System	Fermentation tank	-Pressure:3 Bar -Inner:3mm; outer:2mm; with insulation -Cooling jackets
	Accessories	Yeast Saving Tank
Cooling System	Glycol water tank	-Inner:3mm; outer:2mm
	Accessories	Chiller; Glycol water pump; Pipes & Valves
CIP System	Acid tank, Caustic tank, Trolley	-Pump; Pipes & Valves -Accessories of the CIP System
Control System	-Automatic/Semi-auto
Filtering System	Candle type diatomite filter/Membrane filter/Bag filter
	Bright beer tank	Double-layer with insulation
Filling System	Glass bottle line	Capacity:800-1200 BPH -Washing heads:8; Filling heads:8; Capping heads:3 -Optional: Capacity:1500-2000 BPH -Washing heads:16; Filling heads:16; Capping heads:6
	Canning line	Capacity:1000-1500 CPH -Filling heads:12; Capping heads:1
	Keg system	Keg filling machine; Keg washing machine; Keg washing and filling unity machine

Send Inquiry >>click to contact us now!!!
Product Advantages
1.The Mash tank is equipped with a clamped level gauge for easy observation. All the lauter tun use milled sieve plates, which have higher filtration accuracy and better effect. 2.The grains outdoor of lauter tun is equipped with a dustpan, which is convenient for grains out and cleaning. The drain outlet is separated from the discharge outlet, which is convenient for customers to discharge directly.
3.According to the customer's brewing process, the mash system can not only meet the feeding in the boiling kettle but also meet
the feeding in the lauter tun.
4.Our mash system can realize both natural filtration and pumping filtration. The lauter tun stirring motor is equipped with a frequency converter, which can realize the step-less speed regulation. The rake motor can also be designed up and down to lift the rake.
5.To avoid too much water vapor in the mashing area, the kettle is equipped with an indoor exhaust device or outdoor exhaust device depends on customer needs.
6.Equipping with a special inline hop filter to make the wort clearer before fermenting.
7.The pump motor uses ABB or JLEM American brand, long service life, and low sound.
8.The mash tun is equipped with a grist hydrator to ensure uniform malt moistening.
9.The brewhouse piping design is equipped with a cold and hot water mixing device, thermometer, and flow meter, which can evenly mix the cold and hot water before mashing.
10.The bottom of lauter tun is equipped with a wort collection loop and an under-the-flush device.
11.Equipping with wort balance tank to check the clarity of wort and protect the sieve plate.
12.Equipping with sparge arm and double CIP cleaning loop on top of the tank.
13.Milling sieve plate, wedge-shaped gap 0.7mm, 4mm thickness, can be disassembled and cleaned, and the bottom is supported and fixed.
14.The HLT was designed with a return port, CIP cleaning port, and water inlet, which can realize the recovery and utilization of hot water between the heat exchanger.
15.The working platform adopts water leakage and a non-slip design. 16.Brewhouse manways always use full glass manway.
Send Inquiry >>click to contact us now!!!
FAQ:
1.Q: Are you professional Supplier and tanks Manufacture ?
A: We are the manufacturer of beer brewing equipment for 15 Year and deal in export business since 10 years ago .
2.Q:Can I have the customized products with personal design?
A:Yes,we support any of your wish design,can design and manufacture as client's requirements.
3.Q: Can you guarantee your beer brewing system quality?
A: All of the equipment will be inspected before the package, appliance of the international Standard.
4.Q:How about the after sales service?
A:For our after-sale service, we promise all life of technical support to all client.
All of our products is available with 10 years warranty even for spare parts within quality warranty period, our service is free of charge.
5.Q: Which export port you use?
A:Commonly we will use Qingdao port, sometime, can be other port as your wish.
6.Q: I am green hand in brewery industry? Could you supply training for us?
A: Yes, our engineer can supply the installation equipment and brewery training service overseas.
7.Q: what is your payment item ?
A: We accept 40%TT + 60%TT as for the balance payment before the delivery
