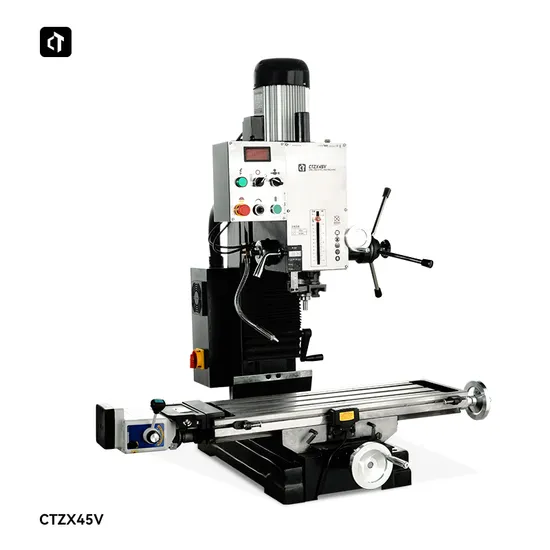

Ctzx45V Drilling and Milling Machine High Accuracy Drilling and Milling Lathe
Basic Info.
Model NO.
CTZX45V
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Standard Woodcase Packing
Specification
1150*1070*1020mm
Trademark
CTMACH
Origin
China
Packaging & Delivery
Package Size
720.00cm * 720.00cm * 1050.00cm
Package Gross Weight
400.000kg
Product Description
Maximum hole diameter 45mmMaximum end mill diameter 32mm
Max face milling diameter 80mm
Maximum tapping capacity M30
working desk size 800*240mm
Table stroke (X,Y) 580mm*275mm
T-slot size 14mm
Spindle taper MT4
Spindle speed change CVT
Spindle speed range 100~2600RPM
head rotation ±90°
Minimum distance from main shaft to column 260mm
Spindle stroke 130mm
Spindle end to table distance 450mm
motor 1500W
Net weight/gross weight 345/400KG
Machine size 1150×1070×1020mm
Package Size 720×720×1050mm
