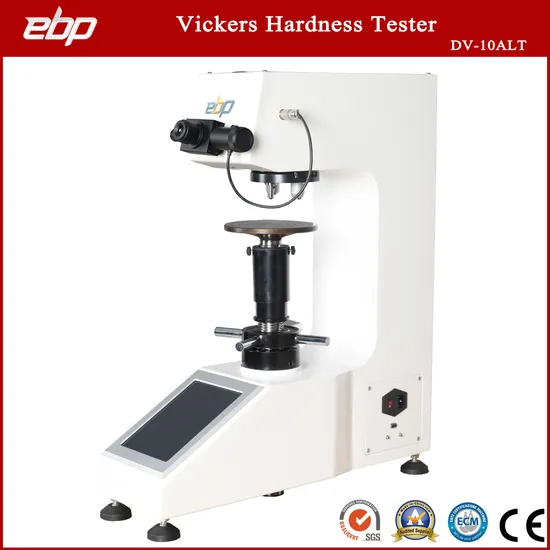

Digital Touch Screen Macro Vickers Hardness Testing Machine with High Accuracy Load Cell

Product Description

Features:
1. Closed loop design with high accuracy load cell, no need to install dead weights, let installation more easy and loading - dwell - unloading automatically, easy operation
2. With load automatic correct function, greatly improved test accuracy and let calibration more easy
3. Hardness value automatic corrected according to different hardness block
4. Touch screen interface with menu structure, make test very simple
5. Modular design, simple maintenance
6. With hardness conversion function, from HV hardness value can covert to HR, HB, etc.
7. With HV/HK test function
8. Support to set a password protection settings
9. Test data can save to USB flash disk as EXCEL format, edit and process more easy
10. Available to upgrade to full automatic Vickers hardness tester
Application: 1) Widely used to test the hardness of all kinds of metal materials (steel, nonferrous metals, tinsel, cemented carbide, sheet metal, etc.) 2) surface layer / coating (Carburization, nitriding, decarburization layer, surface hardening layer, galvanized coating, etc.) 3) Glass, chip, ceramic, plastic and rubber, etc.
Specification:

Model		DV-10ALT / DV -30ALT / DV-50ALT / DV-100ALT
Test Force	DV-10ALT	0.3Kgf (2.94N), 0.5Kgf (4.90N), 1.0 Kgf (9.8N), 2.0Kgf(19.6N), 3.0Kgf(29.4N), 5.0Kgf(49.0N), 10.0Kgf(98.0N)
	DV -30ALT	0.5Kgf (4.90N), 1.0 Kgf (9.8N), 2.0Kgf(19.6N), 3.0Kgf(29.4N), 5.0Kgf(49.0N), 10.0Kgf(98.0N), 20.0Kgf(196N), 30.0Kgf(294N)
	DV-50ALT	1.0 (9.8N), 2.0Kgf(19.6N), 3.0Kgf(29.4N), 5.0Kgf(49.0N), 10.0Kgf(98.0N), 20.0Kgf(196N), 30.0Kgf(294N), 50.0Kgf(490N)
	DV-100ALT	5.0Kgf(49.0N), 10.0Kgf(98.0N), 20.0Kgf(196N), 30.0Kgf(294N), 50.0Kgf(490N), 100.0Kgf(980N)
Hardness conversion		HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Eyepiece		10X digital eyepiece with built-in encoder
Min measuring unit		0.01µm
Hardness range		8-2900HV
Force loading		Automatic loading - dwell - unloading
Turret		Automatic
Objective		Standard: 10X, 20X
Magnification		Standard: 100X (measurement), 200X (measurement)
Dwell time		0-99S (1 second per step)
Data output		Test data display on LCD screen, can save to U-flash in Excel format
Test space		180*160MM (H*D)
Power supply		AC220V+5%,50-60Hz
Standard		ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2
Overall Dimension		580*240*660mm
Net weight		About 50Kg

If want to connect with computer do automatic measurement work and generate test report, please additional purchase our professional Vickers hardness software system
