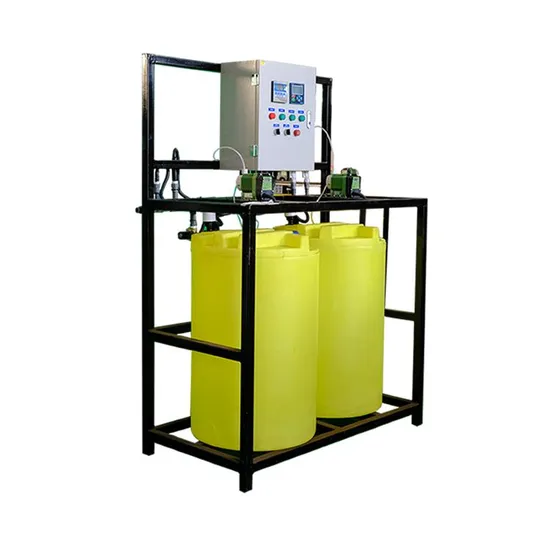

1000L Water Treatment Chemical Dosing System for Cooling Tower

Product Description

Product Description
The automatic chemical dosing system realizes the metering and adding of medicines to the system through the mechanical pulse action and stroke adjustment principle of the metering pump. It realizes automatic dosing through the following two control modes. Time control mode: use the microcomputer time control switch to control the timing opening and closing of the metering pump and the sewage valve, so as to realize timing dosing and timing sewage discharge. Indication control mode: The change of water quality index controls the real-time opening and closing of metering pump and sewage valve, realizing automatic dosing and automatic sewage discharge.
Product Parameters
Key Elements
1.PLC control
2.Metering pump
3.Dosing tank / Chemical tank
4.On-line monitoring for corrosion rate(Optional)
5.On-line monitoring for PH(Optional)
6.On-line monitoring for turbidity(Optional)
7.On-line monitoring for ORP(Optional)
8.Fouling thermal resistance meter, mixer, PLC, GPRS(Optional)

Name	Type	Dimensions(mm)	Import /Outlet Diameter
Single Pump Single Barrel (Time Control)	YTZDJ-2000D	640*670*1650	DN25
Single Pump Single Barrel (With Conductivity and PH Detector)	YTZDJ-2000DP	640*670*1900	DN25
Double Pumps Double Barrels (Time Control)	YTZDJ-2000S	670*1260*1650	DN25
Double Pumps Double Barrels (With Conductivity and PH Detector)	YTZDJ-2000SP	670*1260*1900	DN25
Can be configured on request. Corrosion rate online monitor, turbidity online monitor, ORP online monitor, fouling thermal resistance meter, etc. Mixer, PLC, GPRS, etc. can be configured as required.

Features
1.Various proportions of water treatment chemicals can be added arbitrarily, and the measurement data is accurate.
2.High degree of automation, simple operation and low energy consumption.
3.Installation, use and maintenance are simple and convenient.
4.Strong corrosion resistance, strong acid and alkali resistance, safe and reliable.
5.If the user needs, the system can be remotely controlled and integrated into the computer management system
Functions and Benefits
To provide effective protection from freshwater/seawater corrosion;
To prevent the incrustation of the condenser and the heat exchanger;
To inhibit the formation of organisms and the attachment of biological membrane;
To gradually remove the blockage caused by organic and inorganic corrosion within the system;
Supplementary water does not need a chemical pre-treatment;
Applicable to freshwater, seawater and recycled wastewater and a higher concentration factor is allowable;
Applicable to steel, iron, alloy, plastic, cement, timber and other materials;
Compatible with a variety of water treatment chemicals;
Saving power and water and no wastewater retreatment burden;
Be environmental friendly and quickly and completely biodegradable.
Applications
• Industrial, Air Conditioning Circulating Water and Boiler Water
* To inject corrosion and scale inhibitors, complexing agents for cyanide-free electroplating.
• Textile Printing and Dyeing Industry
* To add chelating agents and oxygen bleach stabilizers.
• Water Treatment System
* To add chemicals to tapping water, waste water and sewage system.
Cooling Water System
I. Common Problems of Cooling Water System
1.Corrosion
Cooling water systems are an ideal environment for the reversion of the metal to the original oxide state. This reversion process is called corrosion.
2.Scale
Minerals such as calcium carbonate, calcium phosphate, and magnesium silicate are relatively insoluble in water and can precipitate out of the water to form scale deposits when exposed to conditions commonly found in cooling water systems.
3.Fouling
The deposition of suspended material in heat exchange equipment is called fouling. Foulants can come from external sources such as dust around a cooling tower or internal sources such as by-products of corrosion.
4.Biological Contamination
Cooling water systems provide an ideal environment for microbial organisms to grow, multiply, and cause deposit problems.
