US$119.99
|
10 Pieces
(MOQ)
|
Basic Info.
Operation Mode
Put in Cabinet
Speaker System
Professional
Certification
CE, RoHS, CCC, FCC
Transport Package
Imported Stronger Paper Cone
Production Capacity
15000PCS/Year
Product Description

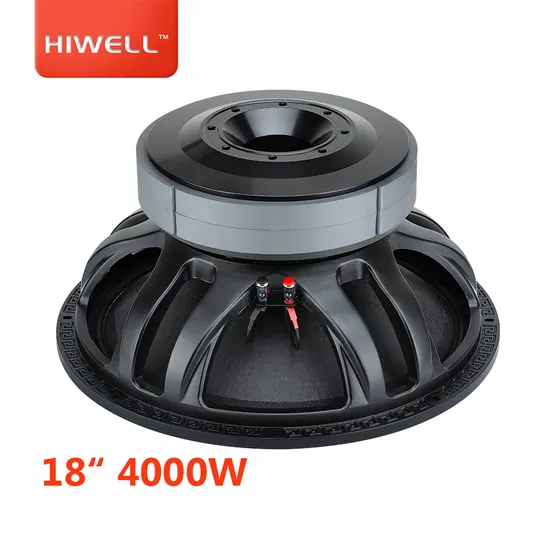

Feel The big Punch Heavy bass 18 inch pa speaker
280mm x 2 pieces Magnet (Double Magnet design)
High quality Big size Coil 125mm/5inch coil Product Parameters
| GENERAL SPECIFICATIONS |
| Nominal diameter | mm (in.) | 461(18) |
| Nominal impedance | Ω | 8 |
| Minimum impedance | Ω | 7.9 |
| Program power (1) | W | 4000 |
| AES Power rating(2) | W | 2000 |
| Sensitivity (3) | dB | 97.4 |
| Frequency range | Hz | 34-1000 |
| Voice coil diameter | mm (in.) | 125(5) |
| Chassis material | Aluminium | |
| Magnet | material | Ferrite |
| Magnet dimensions (ODxIDxh) | mm | 280x140x25 x2 |
| Coil material | SV | |
| Former material | Glass Fiber | |
| Xmax(4) | mm | 17.5 |
| Xmech(5) | mm | 26 |
| Gap height | mm | 14 |
| Voice coil Wingding height | mm | 42 |
| | | | |
| SMALL SIGNAL PARAMETERS |
| Re | Ohm | 6 |
| Fs | Hz | 34 |
| Mms | g | 279 |
| Cms | mm/N | 0.08 |
| BL | N/A | 30.1 |
| Qms | 9 | 7.9 |
| Qes | 0.39 | 0.37 |
| Q-factor | Qts | 0.35 |
| Vas | I | 226 |
| Le | mH | 2.9 |
| Sd | cm² | 1325 |
| Eta 0 | % | 2.9 |
| | | | |
| SHIPPING INFORMATION |
| Net weight | 25.7 | KGS |
| Multipack size (1) (W x D x H) | 485x485x265 | MM |
| Multipack weight | 27.7 | KGS |
Detailed Photos
