Efficient Double Ribbon Mixer for Food Processing

Product Description

Experience Unmatched Efficiency Conical Screw Ribbon Mixers are the pinnacle of mixing technology. Ideal for powders, granular materials, slurries, or viscous substances, these mixers come equipped with optional liquid spraying systems. They are customizable to operate under vacuum, pressurized, heated, or cooled conditions, tailored to meet specific user needs. This remarkable versatility addresses the diverse mixing and stirring requirements across various processing conditions.
The Conical Screw Ribbon Mixers deliver unparalleled mixing power. During operation, the innovative design ensures that materials near the container wall move upwards, while those at the center move downwards. This dynamic action results in a gentle yet thorough mixing process for all flowable materials. This advanced mechanism guarantees highly uniform mixing of large quantities in remarkably short periods. The exceptional discharge mechanism is designed to ensure almost complete emptying of the hopper, minimizing material residue and waste.
Product Features
1. Cantilever Shaft Structure,ensuring that the bearings end remains uncontaminated by the material being processed.
2. The minuscule gap between the agitator blades and the container wall helps prevent material adhesion .
3. A standardized agitator drive box guarantees stable operation and significantly reduces maintenance costs.
4. Easy-Cleaning : Designed for swift and thorough cleaning between batches,
5. Durable Construction : Engineered with robust materials for long-term reliability,
6. Wide Application : Ideal for industries such as pharmaceuticals, food processing, chemicals, and cosmetics.
Technical Parameters

Equipment model	Total Volume (m³)	Loading Coefficient	Motor Power (kW)	Overall Dimensions (mm)	Equipment Weight (kg)
RX-DZH-0.06	0.06	0.4-0.6	1.5	φ630x1451	120
RX-DZH-0.1	0.1	0.4-0.6	2.2	φ715x1569	220
RX-DZH-0.3	0.3	0.4-0.6	2.2	φ920x1929	320
RX-DZH-0.5	0.5	0.4-0.6	4	φ1140x2327	410
RX-DZH-1	1	0.4-0.6	7.5	φ1480x2869	900
RX-DZH-1.5	1.5	0.4-0.6	11	φ1633x3140	1200
RX-DZH-2	2	0.4-0.6	11	φ1816x3489	1300
RX-DZH-3	3	0.4-0.6	15	φ2040x3760	2400
RX-DZH-4	4	0.4-0.6	18.5	φ2250x4425	2500
RX-DZH-6	6	0.4-0.6	22	φ2548x4940	2850
RX-DZH-8	8	0.4-0.6	30	φ2780x5360	4250
RX-DZH-10	10	0.4-0.6	37	φ3018x5815	5200
RX-DZH-12	12	0.4-0.6	45	φ3204x6100	5800
RX-DZH-15	15	0.4-0.6	55	φ3442x6540	6300

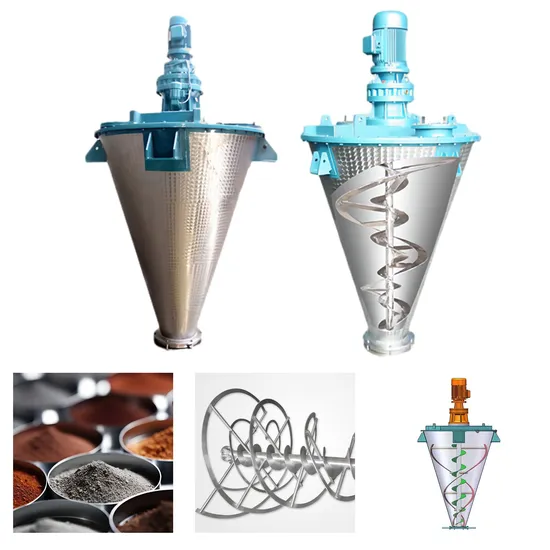

Product Display Product Structure Application
The Double Cone Mixer finds extensive use in industries includingpowder metallurgy, electrical alloys, magnetic materials, battery powders, pearlescent pigments, chemical, medical, and food industriesAbout Our Company Shijiazhuang Rongxin Technology Co., Ltd.
