Plate Mounting Equipment with High Precision

Product Description

Product Parameters
overview :
1.Program Introduction

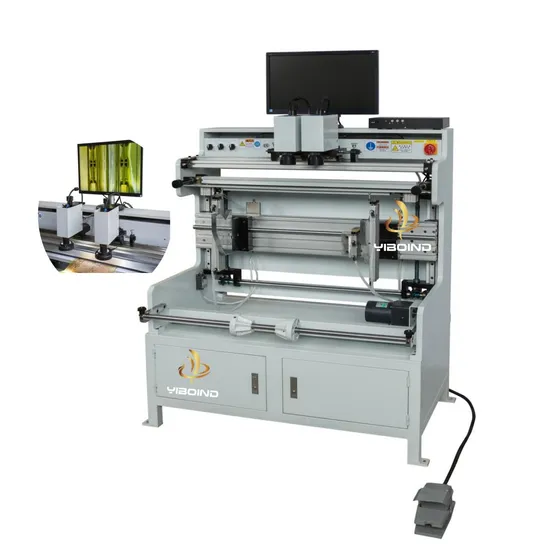

YB-600B flexo plate mounting machine Aimed at wide flexo printing machine customer development of high-end products,Mainly used to complete the wide flexo printing paste version ,include:base frame,Paste version of the work station,High-definition color video camera,Version of the roll lifting gear motor drive mechanism,The corresponding PLC intelligent control system, etc.The prominent characteristics of the device have the following several aspects:
★ High strength processing wallboard structure frame structure,
★Working stability is good,durable in use
★ 650 line colour high-definition cameras,Max up to 70 times magnification,The image clearly,High-resolution,Greatly improved the precision
★Version of the roll body lift adopts the gear motor drive control,Easy paste version of the operation;
★PLC intelligent control,easy operation,Have a high degree of automatio ★20 inch high resolution LCD,The image clearly is gorgeous ,Effectively relieve operators visual fatigue; Equipment status Equipment maximum width within 2 m,Control the longitudinal length of 0.7 meters,Equipment height less than 1.7 m,Drive is located in the equipment on both ends of the wall plate side,Operation and maintenance are convenient. Equipment main technical indicators plate mounting of the effective width: 600MM
Core shaft diameter: Φ400MM
plate mounting of precision: <=±0.15MM
resolution of lens: 650line

Model	Max. Roller Length(mm)	Max. Roller Girth (mm)	Machine Length (mm)	Machine Width (mm)	Machine Height (mm)	Machine Weight (kg)
YB320	320	800	920	600	1650	230
YB650	650	800	1050	600	1650	270
YB1000	1000	1200	1500	600	1650	330
YB1200	1200	1200	1700	600	1650	370
YB1300	1300	1200	1800	700	1650	420
YB1500	1500	1200	2100	700	1650	450
YB1800	1800	1200	2400	700	1650	500

Detailed Photos
Packaging & Shipping

Certifications

FAQ
1. Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.

2. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
