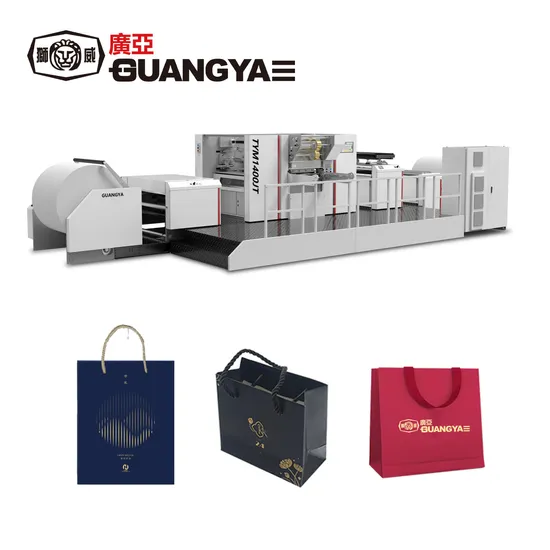

Tym1400jt Automatic Web-Fed Hot Stamping Machine with Slitting (for roll to roll paper)

Product Description

PRODUCT FEATURESTYM 1400JT Automatic Web-Fed Hot Foil Stamping Machine is designed as the new generation product; It is used for automatic stamping roll material that after the printing, laminating. It is suitable for the production of paper box, paper cup, surround-bidding label, card paper pressing convex, portable paper bag, paper cover and so on.
The main machine and frame adopt the advanced resin sand technical, which ensures machine be more stable. The main components are controlled by the Japan Mitsubishi PLC. The main motor is controlled by AC frequency conversion speed regulator; The main transmission system is equipped by air clutch brake equipment, which makes the machine running steadily.
The machine equipment adopts high precision color photo-electrical automatic trace detection, servo motor automatic locating system. Material automatic loading, equipping --- feeder automatic correct equipment. It has advantages of easy length adjustment, high precision locating, stable feeding, even tension, compact structure, high automatic, easy operation, stable property and so on.
TECHNICAL PARAMETER

Technical Data		TYM1400JT
Suitable Material	Cardboard	80-400 g/M2
	Non-woven Fabrics	/
	Plastic Sheet	Acoordingly
Sheet Size	Max. roll diameter	1400 mm
	Max. feeding length	750 mm
	Max. sheet size	1050 X 750 mm
Capabilities	Max. working speed	8000 s/h
	Max. working pressure	350 t
	Working accuracy	± 0.1 mm
Foil Stamping	Adjustable temperature	20 - 200 °C
	Heatable zones	12
	Foil shafts	3L 2T
	Max. foil diameter	220 mm
Power Supply	Main motor power rate	15 kW
	Heating plates power rate	2 kW each
	Total power rate	70 kW
	Air supply	0.6 Mpa, 0.37 M3/min
Machine Dimension	Length	11670 mm
	Width	4675 mm
	Height	2300 mm
	Weight	26 t

MAIN FEATURES
Feeding Station:
• Paper load hydraulic
• Pneumatic shaft
• Imported air clutch to ensure brake sensitive when machine running at high or low speed
• Ultrasonic detection system
• Double brake system to ensure smooth feeding
• With deviation correction function, ensure working accuracy
• With material connecting function, highly improves work efficiency.
Deviation Correction System:• 2nd high-precision deviation correction greatly guarantees the operation accuracy
• Rolls storage and tension guarantee function
Host Station:
• Electrically pressure adjustment function
• One button locking device for chase
• Electrically pressure adjustment function
• One button locking device for chase
Foil Stamping
• 12 independent temperature zones to avoid interstitial temperature differences
• Independent temperature control, energy efficient
• Preheating function in temperature zone, save time
• Easy operation, reduced labour intensity
• Hologram Stamping (optional)
Foil Stepping Function
• Independently developed, exclusive system
• Automatic foil stepping calculation function, foil stepping optimization function
• Up to 6 sets of irregular foil stepping with different spacing can be calculated automatically
Delivery:• Paper unload hydraulic
• Pneumatic shaft
• Servo rewinding
• Ultrasonic detection system
• Rolls pressing function
Control System• Industrial control color touch screen
• Easy operation and visualized functions
• Automatic screen off function, environmental protection and energy saving
• Production operation monitoring, data statistics function.
Electrical Part:
• Modular design of electrical system
• Imported electrical appliances, quality assurance
• Remote module, fast and convenient maintenance
• Air circulation filter system for electrical cabinets
*FOR MORE DETAILS, PLEASE ASK YOUR SALES CONSULTANT
SAMPLES
CERTIFICATE
DELIVERY
The Unique Human Care and Profession Passionate Sales Service System:
We have professional sales and engineer, are ready to send emergency repair parts in 24 hours, easily damaged parts in 5 days with professional knowledge.
We focus on customer service, all year non-stop service, personal training and so on.
Not only provide customer service, But also pre-sales system, including solution to product selection, storage of parts, technical guidance, operating training,exchange management platform and so on.
Realizing the idea of focusing on customer success, creating value to customer.
