Six Motors Compact Fusion Splicing Machine Powerful Battery FTTH Sm/mm Fusion Splicer

Product Description

Six Motors Compact Fusion Splicing Machine Powerful Battery FTTH Sm/mm Fusion Splicer
Fiber Optic Splicing Machine, a reliable, versatile tool for joining and protecting various fiber opticcables. Experience its strong adaptability, high reliability, and user-friendly features. Fibconet provides X-series Fusion splicing machines, we have different solutions according to your specific needs.Our tech team will help you with any problems during purchasing and use.APPLICATIONS
· FTTH· FTTB· Security system
· Field construction· Emergency repair· MAN construction· Underground operation
· Teaching and scientific research FEATURES Portable Design: Handheld, small, and lightweight.Efficient Performance:8-second splicing time26-second tube heating timePowerful Battery: Equipped with a 5800mAh pluggable Li-battery, supporting up to 200 cycles.USB Port: Facilitates software updates and data export.Automatic Calibration: ARC calibration adjusts for temperature and air pressure. technical specificationSpecificationsParameterSpecification

Applicable fiber	SM(IT-U-T G.652&G.657), MM(IT-U-T G.652&G.657), DS(IT-U-T G.652&G.657), NZDS(IT-U-T G.652&G.657)
Fiber count	Single
Cladding Length	Cladding diameter: 80 -150µm, Coating diameter: 160 -900µm
Typical splice loss	SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB(IT-U-T Standard)
Return loss	>60dB
Fiber cleaved length	10-16mm (coating diameter< 250µm ), 16mm(coating diameter: 250-1000µm )
Splicing program	40 groups
Operate mode	Manual, Automatic
Auto-heating	Available
Typical splicing time	8 seconds
Tube heating time	26 seconds for 60mm and 40mm shrinkable sleeves
Fiber view magnification	250X(X or Y view), 125X(X and Y view)
Viewing method and display	2 CMOS cameras, 4.3 inch color LCD monitor
Storage of splice result	4000 results
Loss evaluation	Available
Tension test	1.8-2.2N
Interface	GUI menu interface, easier operation
Battery capacity	5200mAh Battery Capacity, typical times(splice and tube heat)
Power supply	Adaptor, input: AC100-240V(50/60HZ)
Electrode life	More than 4000 ARC discharges, can be replaced conveniently
Terminals	USB 2.0 port, for uploading splice results and upgrading software
Operating condition	Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10°C ~ +50°C, Wind speed: max 15m/s
Dimension	149mm(L)x120mm(W)x127mm(H)
Weight	1.9kg including battery

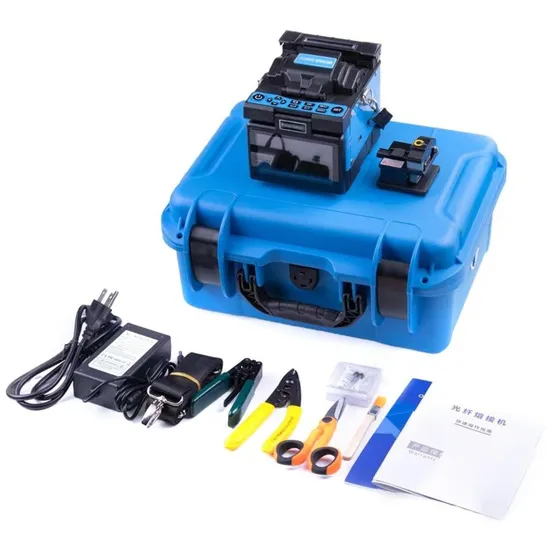

Packaging & Shipping PackageNo.NameQuantity

1	Fusion splicer	1
2	Fiber cleaver	1
3	Spare electrodes	1 pair
4	Fiber stripper	1
5	Skin line stripper	1
6	Cooling tray	1
7	Adaptor	1
8	Power cord	1
9	Carrying case	1
10	Manual(CD)	1
