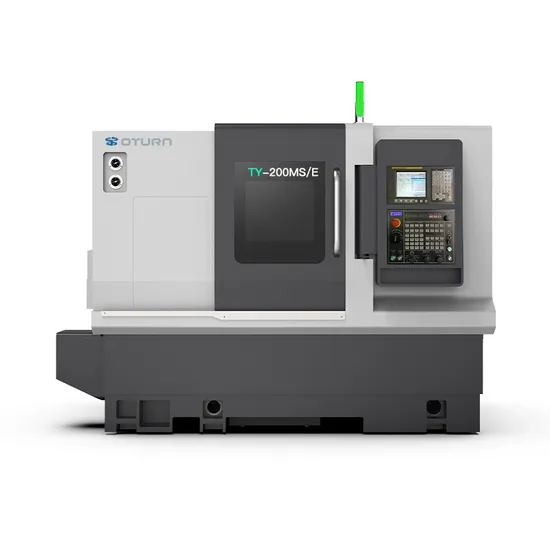

Horizontal CNC Turning and Milling Center Turret Lathe

Product Description

Product Description
Crafted with precision, our Horizontal CNC Turning and Milling Center boasts a high-strength HT300 one-piece structure casting iron bed, engineered for exceptional durability. Featuring a 30-degree step type flat rail structure, this machine utilizes advanced finite element analysis to ensure superior mechanical rigidity and stability. Its design guarantees long-term reliable accuracy, processing stability, and extended tool life. A meticulous stress relief treatment further enhances accuracy and stability. The high-strength roller rail design, combined with a screw pre-tension drive system, considerably boosts response rigidity.
With the capability to process both ends of the workpiece simultaneously in one clamping, this system significantly simplifies manual operations, increases output, and reduces procedural steps. The second spindle is fully capable of turning and expressing workpieces during machining, thus reducing cycle times.
1.Direct drive synchronous electric spindle device: featuring a magnetic ring type incremental encoder (Sine and cosine) for superb positioning accuracy at 20 arc seconds, and C-axis indexing accuracy of 40 arc seconds.
This configuration effectively eliminates spindle vibration, maintaining the deflection accuracy of the nose end within 0.002mm. The result is an improved surface finish on workpieces.
Additionally, the rear-mounted rotor facilitates easier installation and maintenance.
Equipped with a cooling system, the spindle motor suppresses thermal displacement, ensuring a constant working temperature. The spindle system, having passed rigorous dynamic balance tests, offers excellent precision retention, high rigidity, and efficiency. This ensures the machine's capability to perform both fine finishing and heavy-duty cutting, making it ideal for mass production of intricate and high-finishproducts.
2. High rigidity integral servo power turret: Delivers rapid and precise tool changes. The tool holder utilizes a high-rigidity BMT interface, with the power transmission driven by a servo spindle motor.
3. Equipped with THK linear guide rails and ball screws, which are heat-treated and precision-ground to ensure optimal precision and durability. Each axis employs a direct transfer shaft structure and a double-anchor pre-relay method, minimizing thermal displacement and significantly enhancing machining accuracy. The high rigidity, large size, and heavy-duty linear slide rails maintain machine precision even under impact, ensuring smooth displacement and low noise for prolonged service life.
4. Standard configuration includes the FANUC system, with feed drive powered by a FANUC servo motor.
5. Features a perfect hydraulic and lubrication system, utilizing high-quality hydraulic pumps, valves, and components that significantly reduce the failure rate. The design of these systems is both simple and reliable.
6. Incorporates Taiwan rotary chuck, oil cylinder, and automatic chip removal device, which greatly reduce operator labor intensity and allow for safe, efficient production. All functional components are programmable. Special fixture options are also available.
Product Parameters

Name	Unit	TY200MS
The largest diameter rotating bed	mm	Ф660
Max. processing diameter	mm	Ф320
Max.Swing Over Cross Slide	mm	Ф300
Max. processing length	mm	400
Bar diameter	mm	Ф46/46
Spindle nose	/	A2-5
Spindle hole diameter	mm	Ф56
Max. speed of spindle	rpm	5500
Spindle motor power	kw	17.5
Spindle motor power	Nm	62-125
Fydraulic Cylinder/Chuck	/	6"
Spindle nose	/	A2-5
Spindle hole diame	mm	Ф56
Max. speed of spindle	rpm	5500
Spindle motor power	kw	17.5
Spindle motor power	Nm	62-125
Hydraulic Cylinder/Chuck	/	6"
X/Z/S motor power	kw	2.5/2.5/1.2
X/Z travel	mm	210/490
S travel	mm	440
X/Z/S axis moving fast	mm/min	24/24/24
Slide rail type	mm	35roller
Positioning accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003
The knife tower type	/	BMT55-12T
Power cutter tower motor	Kw/Nm	4.5/11-27
Max. speed of	rpm	6000
The knife biock specifications	mm	25*25
Circular cutter holder specification	mm	Ф40
The adjacent tool change time	sec	0.2
Machine size	mm	2600*2100*1900
Machine Weight	kg	4200
Cutting fluid tank volume	L	150
Volume of hydraulic unit box	L	40
Hydraulic oil pump motor power	kw	1.5
Volume of lubricating oil tank	L	2
Auto lube pump motor power	W	50
Cooling water pump power	W	750
