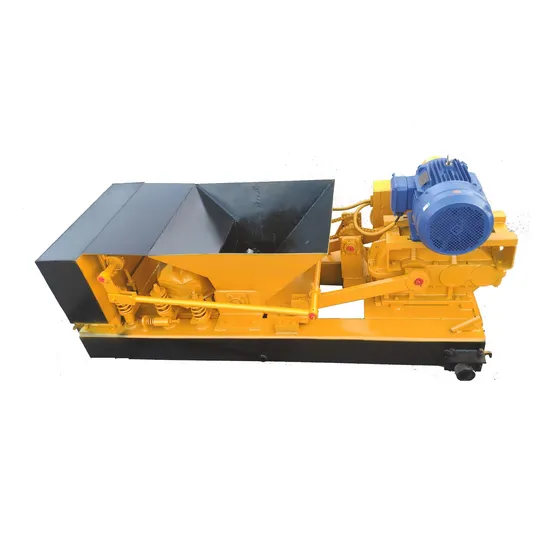

Lintel Making Machine Concrete Lintel Machine Lintel Machine

Product Description

Cement linter integrates a number of key systems such as mixing, feeding, mold forming, vibration, automatic control and maintenance. The mixing system is responsible for the precise proportion and mixing of cement, sand and stone into uniform concrete; The feeding system is responsible for transporting concrete to the mold; Mold molding system according to the design needs to shape the column; The vibration system vibrates to ensure that the concrete is tightly arranged in the mold; The control system automatically manages the entire production process; The curing system is responsible for accelerating the hardening of the column.
The workflow of a cement lintel begins with the precise ratio and mixing of raw materials to form a uniform concrete. The concrete is then fed into a mold and the column is shaped by a mold forming system. Inside the mold, a vibration system ensures that the concrete is tight and bubble-free. Finally, after a period of curing, the concrete is completely hardened to form the finished column. The entire process requires precise control to ensure the quality and performance of the column.
Raw material preparation: The raw materials of the cement lintel mainly include cement, sand, stone, steel bar and so on. These raw materials are subject to strict quality inspection and screening to ensure that they meet production requirements. High-quality cement that meets national standards should be selected for cement, sand should be screened and cleaned to ensure uniform particle size distribution, and stones should be selected for moderate particle size and stable quality. The steel bar needs to be pre-treated according to the design requirements, such as cutting, bending and welding.
Precise ratio: After the preparation of raw materials, it is necessary to carry out accurate ratio. The ratio process needs to determine the proportion of raw materials such as cement, sand, stone and steel bar according to the specific design requirements and engineering requirements. The proportioning process requires the use of an accurate metering system to ensure that the amount of each raw material is accurate. Accurate ratio is one of the key factors to ensure the quality and performance of lintel.
Mixing: In the mixing system, the proportioned raw materials are fully stirred to form a uniform concrete slurry. The mixing time and mixing speed should be controlled during the mixing process to ensure the uniformity and stability of the concrete. At the same time, it is also necessary to pay attention to parameters such as temperature and humidity during the mixing process to avoid deterioration or deterioration of concrete due to excessive temperature or humidity.
Molding and compaction: The mixed concrete slurry is fed into a special mold. The shape and size of the die determine the final shape of the lintel. Inside the mold, the concrete is compacted by high-frequency vibration or pressure to ensure a tight, bubble-free internal structure. In the process of vibration compaction, the vibration frequency and amplitude should be controlled to ensure that the concrete paste is evenly distributed in the mold and achieves the required compactness. At the same time, it is also necessary to pay attention to the cleaning and maintenance of the mold to avoid the impact of mold wear or pollution on the quality of the lintel.
Curing: The lintel after forming needs to be cured for a period of time to accelerate its hardening process. In the maintenance process, temperature, humidity and other conditions should be controlled to ensure that the lintel is in the best maintenance state. The length of maintenance time needs to be determined according to the specific design requirements and engineering requirements. At the same time, the state of the lintel needs to be checked regularly during the maintenance process to ensure the stability of its quality and performance. In the maintenance process, it is also necessary to pay attention to prevent the lintel from being interfered with and damaged by external factors.
Demoulding: After the lintel is completely hardened, the demoulding operation can be carried out. The release process needs to use professional release tools and methods to ensure the integrity and quality of the lindt. The lintel after demoulding needs further quality inspection and screening to ensure that it meets the design requirements and use requirements. At the same time, it is also necessary to pay attention to the safety and environmental protection issues in the demoulding process to avoid harm to the environment and personnel.

Model number	80 * 600 * 2
pass	round
Hole number	7
Aperture (MM)	Ф42
Vibrator power	3.0KW
Reduction type number	350
Motor power	7.5KW
Overall weight	1860KG
Overall dimensions (MM)	2400*1660*900

Note: The above parameters are for reference only, please contact your customer service manager for specific values.
Company Profile
Factory corner display and informationShandong Feiyu electromechanical Technology Co., LTD
Our History Our company was established on june 3, 2019. In that year, we began to produce prestressed hollow slab forming machine, purlin forming machine, lintel wood forming machine and light wallboard machine. In 2020, we began to produce sanitation equipment mainly based on sweeper. In 2021, the crawler series, three wheel and four-wheel transport vehicles began production, and in 2022, the whole company started the R & D and manufacturing of cranes and 3-16 on-board cranes. Our Factory Our company mainly produces a variety of mechanical equipment with domestic advanced level, such as prestressed hollow slab forming machine, purlin forming machine, lintel and wood forming machine, light wallboard machine, crane, truck mounted crane, crawler transport vehicle, sweeper and so on. The design is scientific, reasonable and durable. Among them, the concrete equipment has simple operation, fast forming speed, dense extrusion, high strength, smooth and tidy plane, saving time, labor and convenient maintenance It has long service life and reduces the cost of prefabricated components, so that each component factory has strong competitiveness and high economic benefits. Our Product The first series: concrete floor machine, concrete column forming machine, concrete lintel forming machine, super thick and large-span international concrete floor machine, concrete enclosure machine, and various special-shaped precast unit forming machines are designed and customized according to user needs. The second series: 5-16 crane, three wheeled transport vehicle, four wheeled transport vehicle, 3-16 truck mounted crane The third series: sweeper and remote control cutting machine The fourth series: 1-15t crawler transporter, crawler crane, crawler elevator. Product Application Building materials processing industry, hoisting industry, environmental sanitation industry and field engineering operation Our Certificate
Production Equipment One 630kVA transformer, one 5T gantry crane, two intelligent boring machines, one intelligent planer, one large boring and planing integrated machine tool, five welding robots, one 75kW diesel generator, one 16t truck crane, one four column hydraulic machine, one air compressor, five automatic sub arc welding machines, five AC welding machines, one CNC cutting machine, one bending machine, one edge planing and beveling machine, one oil pressure folding machine, and one air compressor, One automatic derusting grinder and four spray guns. Production Market With strong technical force and excellent workmanship, our products sell well in dozens of provinces, cities and regions across the country and are exported to Russia, Uzbekistan and Thailand, Bangladesh, India, Nigeria, Malaysia, Indonesia, the Philippines, South Africa and other dozens of countries and regions are modern enterprises integrating science, industry and trade. Over the years, due to the timely innovation of products, stable quality, simple operation, long service life and easy maintenance, they have won the trust of customers. It has long cooperated with provincial, municipal and local technical colleges and universities to develop new technologies and high-quality new products, elaborately developed and produced three series of more than 40 varieties of building materials and equipment, with sophisticated technology, advanced process standards and unified standards for spare parts. Our Service Pay attention to quality, service and management, and regard customers as God forever. Parts are sent promptly and quickly, customer visits and technical guidance are accepted 24 hours a day, and lifelong maintenance services and spare parts are provided. Our factory has always been "customer-oriented" to provide customers with overall and comprehensive services; "Service as the core" to create the most valuable products for customers; "Focus on quality" and provide all-round service to every customer! Exquisite products, perfect services and preferential prices are the business tenets of Shuangli people. The product quality is the key to win in the market competition and the foundation of enterprise development. We sincerely cooperate with friends from all walks of life to share a win-win situation with strict management and the principle of "good faith, quality and service".
