Automatic UV 3W 5W 10W Laser Marking Machine for Engraving Plastic/Metal/PVC/Mobile/Glass

Product Description

3W 5W 10W UV Jpt 20W 30W 50W Mopa Color Fiber Metal Laser Marking Cutting Engraving Machine with Rot Laser Marking Machine for Glass Crystal Metal Plastic
Contact :Susie Xu
Equipment Description<<<<<<

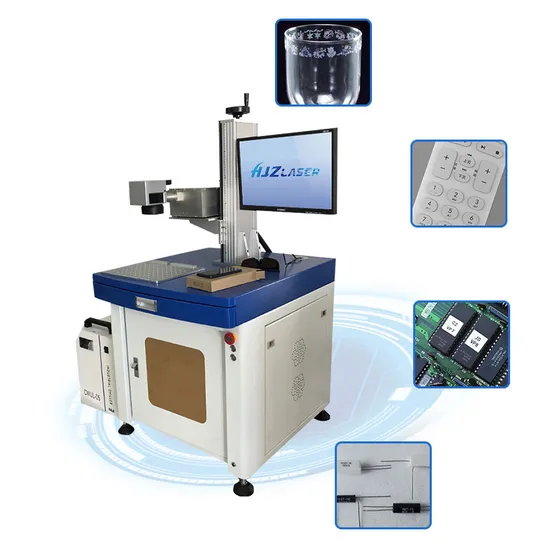

HJZ UV Laser Marking Machine 3W 5W 8W adopts three order intracavity frequency doubling (THG) technology. Compared to infrared laser, 355nm ultraviolet laser has extremely small laser facula, which reduces the mechanical deformation to a significant extent and diminishes the influence of heat-process to a very limited area.
Therefore it can be mainly applied for hyperfine marking and engraving, especially suitable for marking on packing materials ,medicines, Mobile phones ,keyboard , chargers etc.
Machine Features<<<<<<
Stable water-cooling,high precision temperature control.
Applied for hyperfine marking and engraving.
High quality permanent marking.
Environment friendly and safe Machinery.
Electro-optical conversion efficiency, long service life.

Product application :
UV laser marking machine main used for all kinds of glass,Charger shells,TET ,LCD , plasma screens, textiles,thin ceramic,Silicon, IC Crystal, Sapphire,polymers,drug, cosmetic,polymer materials such as wire, bottles(boxes) surface marking , and micro- holes.

Product Name	UV Laser Engraving Machine
Model	MAN-UV3
Output Power	3W
Frequency	20-150KHZ
Beam Quality	<1.2
Depth of Engraving(based on material)	<0.3mm
Gross Power	600W
Operating Voltage	220V 50/60HZ 5A
Laser Wavelength	355nm
Engraving Range	100×100mm
Repetition Precision	±0.003mm
Engraving Speed	≤8000mm/s
Minimum Line Width	0.01mm
Character Size	0.5-110mm
Cooling System	Air Cooling
Cable Length	3m (5m optional)
Working Temperature Range	10-30ºC
Working Humidity	20%-80%

Pre-sale service:
1) According to customers demands, provide relevant technical guidance.
2) Assist customers to design and make laser engraving/cutting solutions considering technical feasibility.
3) Provide equipment demonstration for customers to investigate, make samples and do test, etc.
After-sale service:
1) 1 year warranty for laser metal marking machine;
2) Offer lifelong repair;
3) Engineers available to service machinery overseas.
4) Multi language service;
5) Offer 24 - hour technical support.
Training can be processed in the following ways:
1) Workers of customers can come to our factory in Wuhan, China to get the most professional hand-by-hand training.
2) We can send engineers to customers' country and do training for workers in customers' target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
3) Remote training through Internet tools like Team-viewer, Skype and other instant communication software.
