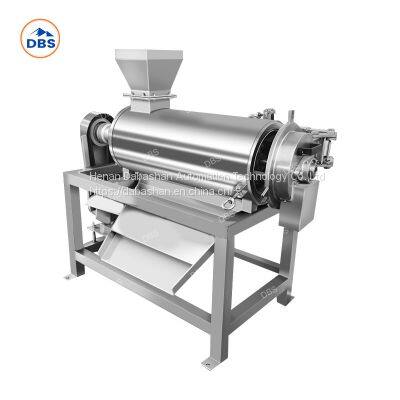

Beater

Product Description

Product Description
Product Description
The motor is driven by a triangular belt, to make the rotor parts rotate at a high speed.
When the fruit is inside the feeder, the material is conveyed spirally to the beating rod by the feeding paddle in the feeding port machine, and the material is smashed under the action of the beating rod.
Due to the centrifugal force, the juice and meat in the material (have become pulpy) enter the next process through the sieve holes on the mesh belt, and the core is discharged from the slag outlet by the slag blade, so as to realize the automatic separation of slurry and slag.
Technical Parameters

Power (V)	Feed Port Dimension (mm)	Height of discharge port above ground (mm)	Discharge Port Dimension (mm)	External Dimension (mm)
380	105*105	260	400*400	1150*640*1070

Scope Of Application
Suitable for orange flesh, grapes, kiwi, mulberry, poplar plums, peaches (pitted), etc., can make them into jam juice.
Make cutting vegetables, tomatoes, peppers, and cutting celery into vegetable juice, and the vegetable muscles and fruits, fruit pit, fruit seed, and fruit peel are separated from the juice. It’s an ideal machine for making fruit jam, fruit and vegetable juice, and important equipment for food processing enterprises.
