CNC Corner Combining Production Line with CNC Hinge Drill, Conveying and Assembling Table

Product Description

CNC Corner Combining Production Line SKZJX-100x1800

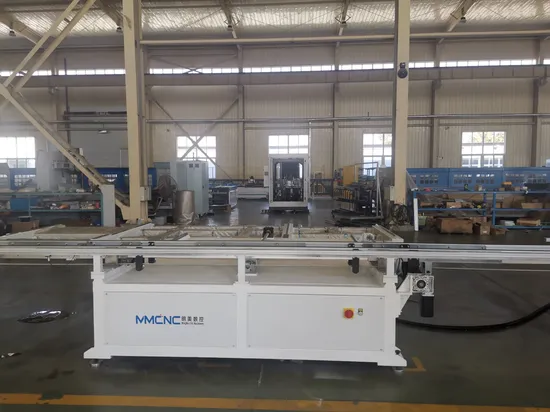

SLT-1800 Feeding Table
The loading table is used as te loading buffer area in the production line, which can buffer 4-8 at one time according to the different sizes of processed materials, so that the production line can realize high-efficiency production without stopping.

Brand Name	MMCNC
Model	SLT-1800
Power Supply	380V 50Hz or customers specifications
Air pressure	0.5-0.8M pa
Window Frame dimension	760-1800mm
Overall dimension: (L x WxH)	5410 x 2210 x 900mm
Weight:	800Kg

CNC Corner Combining Machine
It has the function of full automatic pre-tightening, and adopts the method of controlling the torque output of servo motor to realize the pre-tightening action of angle assembling head with controllable strength and realize high-quality angle assembling processing.

Brand Name	MMCNC
Model	SKZJX-100x1800
Power Supply	380V 50Hz or customers specifications
Air pressure	0.5-0.8M pa
Max frame dimension of window	1000x1800-2200x3000mm
Min frame dimension of window	460x760mm
Oil pump motor power	4kw
Overall dimension: (L × W ×H)	4700 x 3400 x 1650mm
Weight:	2500Kg

CNC Hinge Drill SKDK-1800
Seamless connection with the corner assembly part, full-automatic loading and unloading, and seamless switching of window sash with different sizes. Machining can be realized only by inputting the height and distance of hole position, without programming.

Brand Name	MMCNC
Model	SKDK-1800
Power Supply	380V 50Hz or customers specifications
Air pressure	0.5-0.8M pa
Window frame dimension	760-1800mm
Spindle Motor	2x3.5KW
Spindle Chuck	ER25
Overall dimension: (L × W ×H)	3080 x 3100 x 1500mm
Weight:	1400Kg

Conveying and Assembling Table
The mail function of the assembly station is to install other accessories for the window sash after the corner assembly is completed, which can be seamlessly connected with the unloading station and directly transport the processed window sash to the assembly station.

Brand Name	MMCNC
Model	ZZT-2190x2180
Power Supply	380V 50Hz or customers specifications
Air pressure	0.5-0.8M pa
Overall dimension: (L × W ×H)	2454x2650x800mm
Weight:	1000Kg

Unloading Platform XLT-1800
It can be used as a temporary blanking area when it is not connected with the mounting table. When machining with different sizes is changed, it will be linked with the main machine of the corner assembly part to automatically position to the corresponding size.

Brand Name	MMCNC
Model	XLT-1800
Power Supply	380V 50Hz or customers specifications
Air pressure	0.5-0.8M pa
Window Height Range	760-1800mm
Overall dimension: (L × W ×H)	2454x2650x800mm
Weight:	1000Kg
