China High Quality Medium Speed Paper Bowl Machine Fast Food Bowl Machine

Product Description

A.CHARACTERISTIC OF 2022 New Type High Efficient Paper Bowl Manufacturing machine

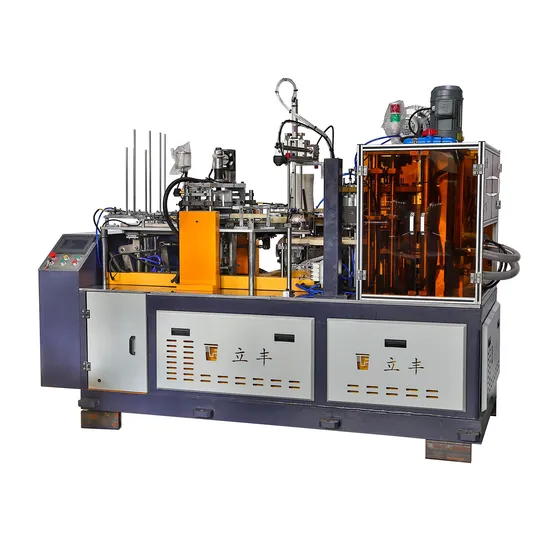

WJ-80 Middle-speed paper bowl forming machine is a machine that developed on the technique of Korea machine. It has the function of automatic paper feeding, preheating, sealing, oil injection, bottom cutting, heating, knurling, curling, and so on. It can alarm via sensor checking, counting and collecting itself. WJ-80 paper bowl machine is an equipment both for single and double PE coated paper bowl, making soup bowls and noodles bowl etc.
B. MAIN TECHNICAL SPECIFICATION

Name	Middle Speed Paper Bowl Machine
HS Code	8441309000
Model	WJ-80
The machine includes: Finished Bowl Collect System
Paper bowl Size	top diameter=90mm-140mm	bottom diameter=70mm-110mm
	height=55mm-116mm
Raw Material	One-side or two-side PE coated paper(Singe PE or Double PE coated paper)
Speed	70-80pcs/min
	Speed of 20 hours stable running per day
Suitable paper weight	170-350gsm
Voltage supply	380v50hz 3-phase *If user's voltage supply is different, please inform us in advance.
Working Air Source	Air pressure 0.6-0.8Mpa, 0.4m3/min User should buy Air Compressor
General power	16kw
Net weight	2000kgs
Measurement (mm)	2200*1200*1800
Cup Side Sealing	EVERGREEN Ultrasonic
We can customize machine and mold according to customer's requirement.

C.Main Advantage
1.The core components adopt open cam design, with gear motor

2. Machine has full automatic lubrication by oil pump and filtration, more convenient for maintenance.
3. Separated curling from knurling and heaters makes less noise on machine than old design, more stability and long lifetime.
4. Control panel use touch screen, a clearer vision, the whole electrical appliances adopt imported configuration, have high generality and good performance, and facilitate equipment maintenance.
5.The machine is controlled by PLC, and has a encoder to control the working of ultrasonic, sensors, solenoid valve and so on, to make the running of each process more accurately.
6. Directly bottom paper feeding system can reduce the wastage of bottom paper .
7. New-type stable collecting system solves the collecting problem of the paper bowl totally, reduce the packing labor and improve the working efficiency,

D.OUR OTHER RELATED MACHINE
we also have paper cup machine,ice cream cone sleeve machine,paper sleeve machine,paper bowl machine etc,can provide you full paper cup production line,if you are interested,pls feel free to contact me.
E.packing details
our Disposable Paper Cup Making machine will pe packed with strong woodencase, also will send you english manual,electric diagram,operation CD,can teach you how to operate the machine and change mold,

F.AFTER SERVICE
1. Paper Cup forming Machinewarranty: 1 year
2. the guide booklet will be sent with machine to guide the installation
process works, adjust the whole machine, production,
3. we will adjust the machine well for one week before the delivery,
4. we can dispatch technologists to buyer's factory, guiding installation, ajustment for a period,
5. we supply the free training of buyer, the training won't stop until the buyer control the whole leson!
6. we supply the consumable spare parts for free for one year use.
J.FACTORY VIEWE
Ruian Lifeng Machinery Co., Ltd (old name: Ruian Sincere Machinery Co., Ltd. ) is a manufactory specialize in producing series of automatic machinery for paper contaciners like paper cup making machine, paper bowl forming machine, ice cream cone sleeve machine, die punching machine etc. Especially the water cone cup machine, we get the patent in China. And all of our products have past CE, SGS. In last 10years, we exported to all of the world and get good feedback from our customers.
We pursue "quality first, service paramountcy". Welcome the clients at home and abroad to negotiate and cooperate.
Q1. Are you trade company or factory?
We are factory, not trade company
Q2. where is your factory and how to get there?
our factory location is 7# yongding road, songjiadai industrial park, feiyun town, ruian city, zhejiang province. china
you can by plane from your country to wenzhou city airport, then we will pick you up by car.
Q3. what certification do you have?
we have CE, BV and SGS certification.
Q4. what is your delivery time?
our mahcine need 25 -30 days in normal, if your order is urgent, we can descuss aout that.
Q5, what is the HS code?
our machine HS code is 8441309000
Q6, when the machine have problems,how you can sove it?
firslty,we have 1 year warranty,we can provide comsumable spare parts for free
secondly,all machine will be insatalled and test well in factory,we will test machine for one week,and make sure when you receive machine,can start prodcution at once,
thirdly,if when you receive machine,the machine can not run well,then you can send video and photo to us,we are 24 hours avaliable for you,and will teach you step by step,help you slove problem,
forthly,if the machine problem,you can not slove it by yourself,then we can dispatch the engineer to your factory,
Q7, what is the manual and instruction language?
the manual and instruction all will use english language,if you want use your country language,it also can be customized,and we also will send you a operation video,teach you how to change mold and operate machine,
Q8,can we make different size in one machine?
you can make different size in one machine,but need change mold,also suggest you the cup size should same bottom size and same angle size with intalled mold,
Q9,what is the meterial is avalisable for this machine?
the material is pe coated paper,normally all buy the printed and cutted paper cup fan from paper factory,i can introduce you some good price paper factory,
If you are interested in our machines,please don't hesitate to contact me!
Contact supplier:Yvette Qu(Miss)
