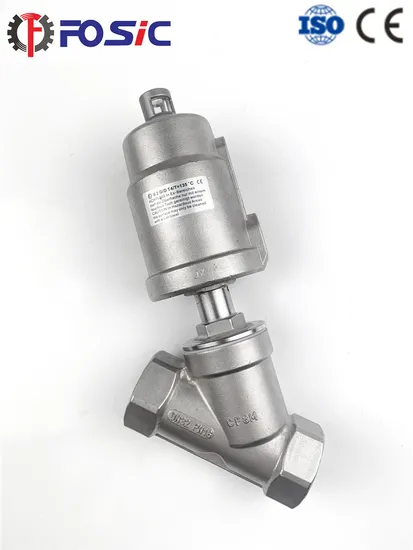

Stainless Steel Pneumatic Piston Angle Seat Valve
Basic Info.
Model NO.
J611F-16P/R
Material
Steel
Valve Plug
Steel, Stainless Steel
Connection Form
Thread
Open Manner
General
Size
1/2"--3"
Usage
Sanitary Ware
Situation
Industrial
Service Life
>3 Years
Transport Package
Carton Box
Specification
1/2"--3"
Trademark
FOSIC/OEM
Origin
Zhejiang
HS Code
8481804090
Production Capacity
8, 000PCS/Month
Product Description
1.1,Stainless Steel Angle Seat Valve InformationWarranty: 12months
Type: Globe type
Customized support: OEM, ODM, OBM
Place of Origin: Zhejiang, China
Brand Name: Fosic
Model Number: Thread Angle Seat Valve
Application: General
Temperature of Media: Medium Temperature
Power: Pneumatic
Media: air,water,oil,gas,steam
Port Size: 1/2''~3'', DN15-DN80
Structure: Angle
Standard or Nonstandard: Standard
Medium Temp.: -10~+180ºC
Ambient Temp.: -10~+60ºC
Pressure Difference: 0~1.6MPa
Air Pressure: 0.4~0.8MPa
Working medium: Netral and aggressive liquid,gases
Body Material: SS304,SS316
Sealing Material: PTFE
2.2 Workshop
3.3 Products
4.4 Package & Logistics
5.5 RFQ
1. What is the MOQ for your products?
There is no special requirement for standard products?
2. How to place the order?
We accept MADE IN CHINA online OR VIA MAIL BOX and orders sent by air, sea, express.
3. Why your quotation is different with the price listed in web?
We have different price policy to the buyer with different quantity and demand. you can contact with us directly to get a cheaper price.
4. How many days you can send order after payment?
For standard products, we can send around 2~3 days after payment.
