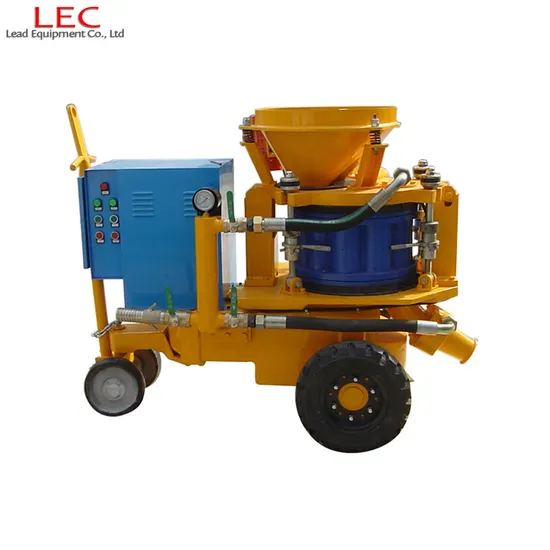

Stable Performance Electric Dry Concrete Shotcrete Machine for Construction for Coal Mine
| US$2,000.00-6,800.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LZ-9E
Machining Process
Welded Molding Machine
Structure
Rotor Type
Productivity
9
Feeding Height
1.17m
Certification
ISO9001: 2000, CE, SGS
Condition
New
Color
Customized
Drive Mode
Electric Motor Drive, Pneumatic Drive, Diesel Driv
Output Capacity
9m 3 /H
Max. Horizontal Conveying Distance
200m
Max. Aggregate Size
Dia.20 mm
Conveying Hose Inner Diameter
Dia.64 mm
Transport Package
Plywood Case, Free-Fumigation
Specification
ISO
Trademark
Leadcrete
Origin
China
HS Code
84743100
Production Capacity
5000 Sets/Year
Product Description
stable performance electric dry concrete shotcrete machine for construction for coal mine1. Description:
LZ-9 is large-sized shotcrete machine for the spraying process.
LZ-9 is available in following versions:
Basic: electric drive can be combined with tyre chassis
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel
2. Application:
LZ-9 can be used for large-section tunnel building, mine, etc
3. Features:
1.Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2.Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3.Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
4.Technical data:
Partifularly used for dry, damp mix and steel(polymer)fiber reinforced shotcrete.
| Drive type | electric motor |
| Output Capacity | 9m 3 /h |
| Max. Horizontal Conveying Distance | 200m |
| Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
| Max. Aggregate Size | Dia.20 mm |
| Conveying Hose Inner Diameter | Dia.64 mm |
| Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
| Air Consumption | 10~12m 3 /min(357-430CFM) |
| Material Charging Height | 1.1m |
| Rotor Speed | 11r/min |
| Electric Motor | 7.5kW,Y132M-4,IP55 |
| Vibrator Electric Motor | 0.15kW,XVM-A1.5-2 |
| Available Voltage | 220V,380V, 440V,660V 50Hz/60Hz |
| Overall Dimension(length×width×height) | 1.65×0.9×1.25m |
| Net Weight | 900kg |
