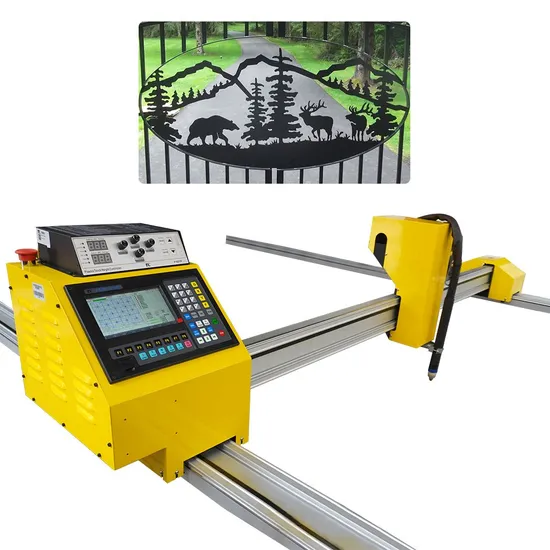

CNC Plasma/Flame Cutting Robot Machine Portable for Metal, Carbon Steel, Aluminum Steel, Metal Alloy, Stainless Steel

Product Description

Product Description
The gantry CNC plasma/flame cutting machine system can cut any flat shape parts composed of straight lines and arcs. Combination of dynamic and static graphics, easy to learn, can be programmed directly on the machine, can also be drawn on the computer or attached with ready-made CAD files. The presented software is directly converted into G code program files, copied to the operating system through the U disk for automatic cutting. TABLE gantry type double-sided drive structure, the system structure is exquisite, high degree of automation, simple operation, convenient maintenance, high reliability, easy to cut from sheet metal to large thickness steel plate, this product is widely used in various manufacturing metal Plate cutting field. The cutting process can cut carbon steel, stainless steel, alloy steel, aluminum and other non-ferrous metal plates.

Detailed Images

This is a CNC plasma metal cutting machine, which can cut iron plate, stainless steel plate, carbon steel plate, copper plate; aluminum plates, galvanized plates, titanium plates and other metals
Chinese best brand plasma power source; 63/100/120/160/200/300/400A
Use soft switch inverter technology, to make cutting current very stable; Cutting current rise slowly, reduce consumption of cutting parts; Has a wide adaptability to grid voltage; Unique dust-proof design, high reliability; Compact structure, small volume, light weight, can be installed on many kinds CNC machines;
Big size Track use high precision linear guide, and light weight alloy-aluminum horizontal rail, not easy become deformation.
Cutting torch
Flame cutting torch is fixed, plasma cutting torch is mobile type. Flame torch and plasma torch could be changed very easily.
Double driver with Leadshine brand stepper motor Famous brand in China

Size Information
Technical Parameters

Technical Specification
Model	JX-T1530D	JX-T2060D
Effective cutting range(mm)	1500×3000mm	2000*6000mm
Cutting speed (mm/min)	50-8000
Input power source	380v±10% VAC,50/60HZ,three phase
Input Machine body	220V±10%V AC, 50/60HZ, Single phase
Plasma cutting thickness(mm)	0.5-30mm (According to your plasma power source)
Plasma cutting gas	compressed air
Cutting torch	one plasma cutting torch with plasma power source
CNC controller system	F2100T
THC	Build-in controller
Motor	Leadshine Stepper motor and drive
Drive type	Bilateral drive
Operation precision	±0.2mm
Guide length ×guide width ×guide thickness (mm)	3500×273×60
Nesting software	StarCam or Fastcam
Gas pressure (Mpa)	0.5

Working pictures
JX-1530D JX-2040D table CNC plasma cutting machine removable is used to cut 0.3- 32mm thin metal sheets, the metal sheet could be iron, stainless steel, aluminum, copper, Titanium, tin and many other kinds metal. Widely used in trucks, trailers, motorcycles, pressure vessls, general machinery, steel structure, ship and so on.
Packaging & Shipping
One machine picked in 2 or 3 wooden cases. Shipped by sea by LCL, or by truck, by air.
Company Profile
Shandong Jiaxin Machinery Equipment Co.,Ltd.located in the hometown of Confucius and Mencius-Jining City, northwest of excellent transport location for communication between business and customers to provide a great convenience and fast.
Science and technology are primary productive forces"continuous advancement of technology is the development of the eternal source of power. The factory after nearly 20 years of development from a roller mold factory into a large-scale production of cold. Hot-rolled steel processing equipment. CNC steel processing equipment five series more than thirty kinds of products manufacturer enterprises.
We have always adhered to the "integrity of management, quality first" business philosophy; customer for Gud's business objectives. Through a nationwide sales and service network, improve the pre-sale, selling service and after sale service; sincere cooperation by providing quality products and efficient service for you.
Our Services & Strength
1.Pre-Sales Service: 1)Inquiry and consulting support.
2)We provide you the friendly English user manual and testing video free.
3)24 hours technical support by email or calling.
2.After-Sales Service: 1)Video of operating the machine are available.
2)12 months warranty quality guarantee and charge free technical support forever.
3)Free training to make sure you master the operating of machine.
FAQ
Q: What's the delivery time?
A: 10-15 working days to delivery port.
Q: What's the usually delivery terms?
A: FOB, CNF, CIF, Exworks will be OK.
Q: What's the MOQ?
A: 1 set.
Q: What's the payment term?
A: We accept T/T, L/C or Cash.
Q: What's your delivery port?
A: Usually Qingdao port, Shanghai port.
Q: What's the packing?
A: Iron Pallet and Plywood cases or carton or depending on your requires.
Q: Can I change the motor to my local voltage and frequency, Is thereany extra charge?
A: Yes, we can supply motor with frequency and voltage according to local standard. Such as 220V/380V/410V/415V/440V, and 50HZ/60HZ without extra charge.
Q: Can you place OEM orders?
A: Yes,OEM orders are acceptable. We can manufacture machines according to your requirement with your design,logo,color,materials or brand information.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai.
