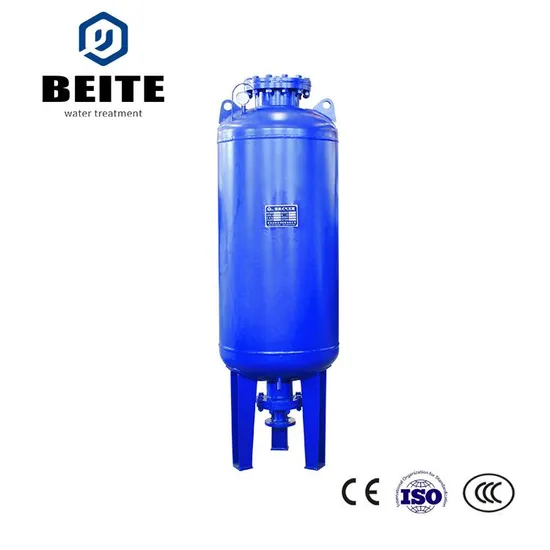

Diaphragm Air Tanks Bladder Pressure Tank Water Storage Tank

Product Description

Product Description
Diaphragm pressure tank is an energy storage device composed of steel shell and rubber diaphragm inner tank. The rubber diaphragm completely separates the water chamber from the air chamber. The air in the tank is compressed. According to Boyle's gas law, the gas is compressed to a small volume, and the pressure rises to store energy. The expansion of the compressed gas can press the water in the rubber diaphragm out of the tank.
Product Parameters

Model	Nominal Diameter (mm)	Working Temperature (MPa)	Total Volume (m³)	Effective Volume (m³)	Diameter (mm)
					∅	H	DN
NZG400	400	1.0	0.12	0.054	400	1260	50
		1.6
NZG600	600	1.0	0.35	0.125	600	2000	50
		1.6
NZG800	800	1.0	0.85	0.35	800	2340	50
		1.6
NZG1000	1000	1.0	1.56	0.5	1000	2480	50
		1.6
NZG1200	1200	1.0	2.65	0.75	1200	2830	50
		1.6
NZG1400	1400	1.0	3.61	1.000	1400	2970	50
		1.6
NZG1600	1600	1.0	4.95	1.950	1600	3065	80
		1.6
NZG1800	1800	1.0	7.06	2.120	1800	3170	80
		1.6
NZG2000	2000	1.0	9.23	3.650	2000	3320	80
		1.6

Features
1. It is reliable and easy to install.
2. We offer a one year full machine warranty.
3. It is CE Certified, and it is manufactured under ISO standard.
4. It offers a simple structure, high effciency and is cost effective.
5. The most popular design in the market, reliable and easy to maintain.
6. Good Airtight Performance: the tank body is an airtight device that does not touch water, ensuring that the water quality is not polluted by the outside world.
7. Long Use Life: The rubber can be stretched more than 200,000 times, and it can be used for a long time when it is inflated once.
8. Eliminate Noise: It can effectively smooth the pressure fluctuation in the water system and automatically eliminate the noise of the pipe network.
Structure
