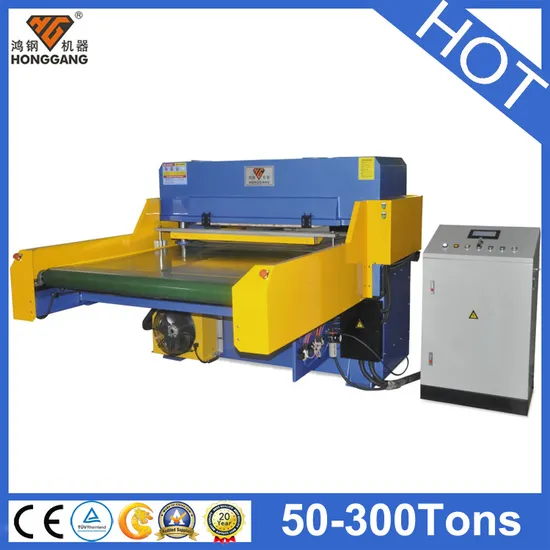

High Speed Automatic Conveyor Belt Cutting Machine (HG-B80T)

Product Description

High Speed Automatic Conveyor Belt Cutting Machine (HG-B80T)
The cutting machine used for die cutting soundproof products,automotive interior,car seat covers,leather,foam,multi-layerfabrics etc.rolls materials. 1.Cutting Video: Fully hydraulic automatic Roller Feeding die cutting machine for leather&sponge-foam cutting video:
https://hgcutting.en.made-in-china.comG&index=1
More cutting machine video on our youtube page:
https://hgcutting.en.made-in-china.com
2.Features and Advantages 1.Automatic roller-in-feeding,moveable clamp out-feeding,allows all cutting process without any labor.
2.Roller device with auto rolling function to roll materials easily;rollers easy to change.
3.Controlled by PLC(Programmable Logic Controller),with touching screen,to adjust working pressure,stroke,feeding speed easier,faster and more precise.
4.Auto-balance structure of double-cylinder,four-column and self-balance connecting rod,makes sure equal pressure in any working area.
3.Product Specification

Model	Cutting Force	Dimension/(mm)	Cutting Area	Moter	Stroke	Net Weight
HG-B60T	60 Tons	2100*2200*1700	810*1400mm	5.5kw	50-240mm	4000kg
HG-B80T	80 Tons	2100*2200*1700	810*1400mm	7.5kw	50-240mm	4500kg
HG-B100T	100 Tons	2100*2200*1700	810*1400mm	7.5kw	50-240mm	5500kg
HG-B120T	120 Tons	2100*2200*1700	810*1400mm	11kw	50-240mm	5500kg
HG-B150T	150 Tons	2100*2200*1700	810*1400mm	11kw	50-240mm	6000kg

Remark:Cutting force can be from 50 tons to 300tons;cutting area can be (610/710/810/910mm)×(1400/1600/1800mm),etc
4. The Cutting Machine Working Show
Foam Roller Cutting:
Multi-layer Fabrics:
5. FQA: 1)What's warranty of roll cutting machine?
12 months Warranty Life-long maintenance service for machine
2)What's your after-sales service?
Engineer available to serve machines over seas;
Email and calling service in working hour; 24 hours door to door in domestic.

3)Can we test the our material by your machine free?
Yes, please contact us to send your matrial.

4)How to confirm how much ton pressure is fine?
Always 1m knife line need about 5 ton pressure.
please send your drawing or product photo, we can help you confirm.

5)Can you make dies & PP boards?
Yes, just send your drawing or material.
PP board will come with machine to you.

6)Are you a factory or trading company?
We are a factory and manufacturer

Don't know how many ton you need?
Please contact us!

If you are not sure if your material can be cut by this cutting machine,we want to know the product information:

Material:
Max. material width:
Max. material thickness:
Max.cutting length:
