China Paper Cup Forming Machine with Online Handle Applicator

Product Description

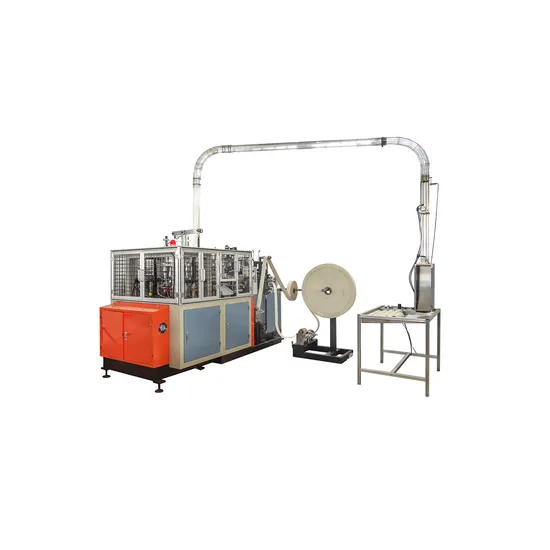

RD-LB120-3600A automatic paper cup forming machine with online handle applicator is our latest machine, which is made base on our manufacturing experience and advanced technology from oversea countries, it is a pioneer equipment in China. The machine comes with rectangle tube and channel steel welding structure, which is stronger and small deformation, automatic lubrication system, which makes all mechanical parts working much more smoothly. The cup bottom adopts the stretching die which make the bottom sealing quality better and less leaking percentage. It has PLC control, sensor failure detecting system, cup bottom paper feeding controlled by servo motor, bottom paper will be delivered when cup tube comes, otherwise no bottom paper delivery. The machine has safety guard to protect the people working safely, it is the best choice for making paper cups. It has working speed 65pcs/min, with Ultrasonic sealing, automatic lubrication, PLC control and touch screen, safety guard and stacker, with cam system instead of chains, 2 gear boxes included(125-8 and 80 model).
The machine can fix the handle automatic by using the paper roll.
Product Description

Model	RD-LB120-3600A
Cups Specifications	6-22OZ
Weight	2200kg
Total Power	380V 50HZ
Paper Specifications	160-380 g/m2
Speed	55-65 pcs/min
Gas source	0.4m³/min
General Power	9Kw
Paper cup top diameter	45mm-85mm,55mm-105mm
Paper cup bottom diameter	35mm-62mm,45mm-80mm
Paper cup height	35mm-125mm,60mm-120mm
Packing Dimensions	2730*1460*1800mm(L*W*H)
Port	Ningbo/Shanghai
Shipping Details	By sea/air,according to customers' requirements.
Cup Use	Round paper cups, drinking , noodle and vending cups ice-cream and food containers
Other Products	Paper cup machinery,die cutting machine,paper cup forming machine,cup top flatten machine and other products.
