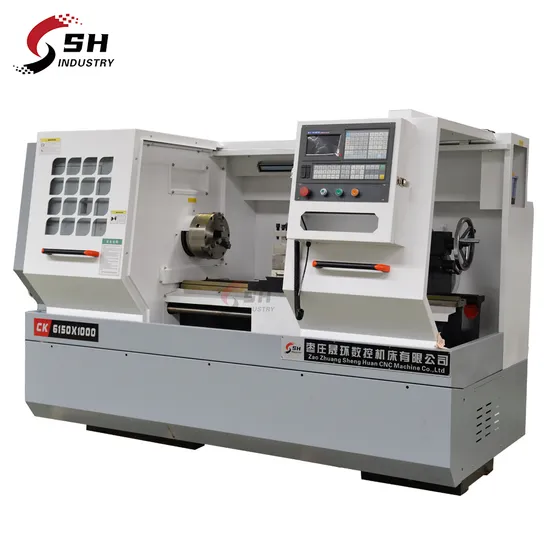

CNC Horizontal Bench Lathe Machine Ck6150 China Metal Flat Bed Turning Lathe Machine

Product Description

CNC Horizontal Bench Lathe Machine CK6150 China Metal Flat Bed Turning Lathe Machine
Product Description

CNC Lathe Use:
Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.
Technical Specifications:
Standard configuration:
360mm bed width,
4 station electric tool post
Spindle hole 52mm
Manual chuck, manual tailstock
Low-high 2 steps speed
GSK control system
Optional configuration:
Hydraulic chuck,
Hydraulic tailstock,
6/8 station electric turret,
Spindle hole 80mm,
Siemens/ Fanuc control system
Independent spindle
Servo main motor.
Auto chip conveyor
SPECIFICATIONS

SPECIFICATIONS	Units	CK6150
Swing over bed	mm	500
Swing over cross slide	mm	260
Distance between centers	mm	750/1000/1500/2000
Spindle bore	mm	52(Optional 80)
Spindle bore taper	-	MT6
Spindle nose type	-	C6
Spindle speed steps	-	Manual 2 steps
Spindle speed range	rpm	L:100-500 H:500-1800 (Optional 90-1800 stepless)
Turret/tool post	-	Electric 4 position
Tool size	mm	25 x 25
X axis travel	mm	280
Z axis travel	mm	750/1000/1500/2000
X axis rapid traverse	mm/min	6000
Z axis rapid traverse	mm/min	8000
Tailstock quill diameter	mm	65
Tailstock quill taper	-	MT5
Tailstock quill travel	mm	130
Main spindle motor	kw	5.5
Coolant pump motor	kw	0.09
Weight for 750	kg	1800
Weight for 1000	kg	1900
Weight for 1500	kg	2000
Weight for 2000	kg	2100
Dimension for 750	mm	2200x1700x1750
Dimension for 1000	mm	2500x1700x1750
Dimension for 1500	mm	3000x1700x1750
Dimension for 2000	mm	3500x1700x1750

Detailed Photos
Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
