Conventional Hydraulic Centerless Grinding Machine M1080b
| US$1.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M1080B
Type
Centerless Grinding Machine
Processing Object
Cylindrical Shafts
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Accuracy
0.005mm
Grinding Wheel
500*150*305mm
Max Diameter
80mm
Transport Package
Wooden Case
Specification
1950*1580*1486mm
Trademark
PHISONG
Origin
China
HS Code
8460291100
Production Capacity
100
Packaging & Delivery
Package Size
210.00cm * 170.00cm * 160.00cm
Package Gross Weight
4000.000kg
Product Description

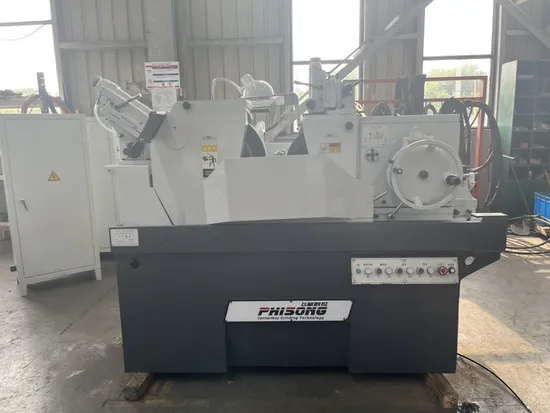

Precise Centerless Grinder Model M1080B
1. Salient features:
1.1. Grinding wheel and regulating wheel
1.1.1.Structure of fixed grinding wheel and movable regulating wheel
1.1.2.The grinding wheel designed in cantilever type, and its spindle adopted multi-plate long bearing bushed static-hydrodynamical oil film bearing.
1.1.3.Cantilevered regulating wheel, the spindle supports solid bearing sliding with 1:30 taper.
1.1.4.The regulating wheel feed slide is supported on roller guideway.
1.2.Electric
1.2.1.AC frequency converter is used for regulating wheel speed control .
1.2.2.Hydraulic transmission & stepless speed regulation are adopted on regulating wheel & grinding wheel dresser.
1.3.Machine body and design
1.3.1.Equipped plunge device in the grinder.
1.3.2.Iron casting with high rigidity, natural aging.
2. Technical Data:
| In-feed Grinding | Dia. | 5-80mm |
| Length | 150mm | |
| Through grinding | Dia. | 5-80mm |
| GW SPEC. (O.D.*width*I.D.) | P500*150*305mm | |
| RW SPEC.(O.D.*width*I.D.) | PSA300*150*127mm | |
| GW Speed | 1300r/min | |
| RW Speed (stepless) | 14-180r/min | |
| Swiveling Angle of RW | Vertical | -2°~ +5° |
| Horizontal | 0°~ +3° | |
| GW min feeding amount | 0.005mm | |
| GW dresser min feeding amount | 0.01mm | |
| Height from center line of GW & RW to work rest | 210mm | |
| GW Motor | 15kw | |
| RW Motor | 1.5kw | |
| Power Supply | 3N 50HZ 380V | |
| Dimension(L*W*H) | 1950*1580*1485mm | |
| Machine Weight | About 3500kg | |
| Accuracy (standard bars D10mm,L50mm) | Roundness | 0.002mm |
| Cylindricity | 0.003mm | |
| Roughness | Ra.0.32μm | |
