Guangen 2024 3axl Double Floor Steel Chassis Auto Vehicle Transporter 6/8/10 Units 3 Axle Car Carrier Special Semi Trailer with Low Price

Product Description

Product Description

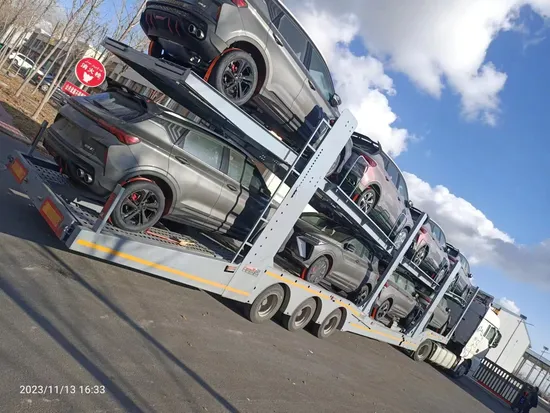

3 Axle Car Carrier Semi Trailer
Car carrier trailer refers to a vehicle used to transport cars. There are three types of car carriers based on their structural forms: double-axle dual-tire, double-axle single-tire, and single-axle dual-tire. Based on their appearance, car carriers can be divided into skeleton type, semi-enclosed type, and enclosed type. Car carrier trailer can be customized in length according to customer demands, with the frame being welded I-beam. The entire body of the car is welded using full-automatic submerged arc welding and carbon dioxide gas shielded welding. After welding, it undergoes shot blasting treatment to eliminate welding stress and improve paint adhesion, resulting in stable quality and an attractive appearance. The upper chassis can be divided into two or three parts and adjustable in height using a hoist and hydraulic cylinder. The front panel of the enclosed type is covered with stamped small corrugated plates, while the sides are covered with either small corrugated plates or stamped corrugated plates. The top is equipped with poles and a cover. The vehicle is equipped with a toolbox, a spare tire rack, and a drip brake system to enhance the safety of vehicle transportation.
The car carries trailer can be made into different lengths according tocustomer requirements,The frame is a welded 1-beam, and the entire body adopts automatic sub-merged arc welding and carbon dioxide gas shielded welding.After the welding is completed, shot blasting is carried out to eliminatewelding stress and improve the adhesion of the paint surface, so that thequality is stable and the appearance is beautiful.The vehicle is equipped with a tool box, a spare tire rack, and a drip brakesystem to improve the safety of vehicle transportation.
Product Parameters

Dimension	17000*2550*3950mm(0utside)
GW(kg)	7500kg
Main beam	Mild Alloy (16Mn) by Automatic submerged arc welding.The height of the beam is 500 mm, upper plate is 14mm,down plate is 16mm,middle plate is 8mm.
Axle	3 axles, 13Ton Fuwa brand 16ton brake pads
Landing Gear	Fuwa 28T lifting capacity with two speed
King Pin	2.00 inch bolt-in king pin Brand JosT
Suspension	Mechanical suspension reinforced type
Leaf Spring	90mm(w)*13mm(T)*10 Layer
Pneumatic Braking System	Dual line pneumatic brake system,T30 air chamber ,40L air tanksEmergency relay valve
Tire	235/75R17.5*12 pcs
Accessories	One standard tool box
Spare tire rack	one
Electrical system	24 volt electrical system.7 pin electrical connector. Parking stop, reversenumber plate and indicator lights.rear lights conform to European standard, rear front and side reflectors
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosiveprime, 2 coats of final paint
Shipping Terms	By Bulk CargO/RORO OR 45ft HQ container

Our Advantages
Customization ServiceAs a manufacturer of semi-trailers, we can provide customized services for semi-trailers, such as customized size, load capacity, and buyer's company logo.High Quality AccessoriesAs an important part of a semi-trailer, axles, tires, suspensions, steel rims, etc. are all affecting the load capacity and service life of the vehicle.The accessories of Jianxing semi-trailer are all selected from high-quality factories, including FUWA, BPW, JOST and other famous brands.High-quality Raw MaterialsJianxing semi-trailers are all made of high-quality steel, machine bending, machine welding, to ensure the loading capacity of the vehicle.According to the requirements of different countries on the vehicle's tare weight, Q345B and high-strength steel can be selected to reduce the vehicle's tare weight under the premise of ensuring the load.CuttingIn order to ensure the accurate size of raw materials and smooth cutting surface, laser cutting is mainly used.
Note: Laser cutting machine (by manually operating the machine, cutting the raw material into the required shape and size)Detailed Photos
Company Profile
SHANGDONG GUANGEN INTERNATIONAL TRADE CO.,LTD. wasestablished in 2021 in Jinan by Shandong YUNCHENG YONGXING Special Vehicle MManufacturing Co., Ltd. Our company is located in WandaPlaza in the Jingsi Road in the center of Jinan City.
At present, the company mainly sells container flat semi trailer, containertransport vehicle, semi dump truckvarious series semi trailer, full trailer.van, car transport vehicle manufactured by Shandong YUNCHENGYONGXING Special Vehicle anufacturing Co., Ltd. There are more than40 kinds of products and the weight of vehicles from 8 to 120 tons. In additon, SHANGDONG GUANGEN INTERNATIONAL TRADE CO LTDto undertake special vehicle modification design business. The company'sproducts are exported to all over the world, such as southeast Asia, CentraAsia, the Middle East, Africa and so on.
Our company is led by a professional manager who have been in the sameindustry for more than 10 years. we have a perfect training mechanism.perfect foreign trade process, reasonable risk aversion rules, rich foreigntrade business experience. The company's philosophy is concentric sharewith win-win, greatful for you and the service attitude is every trust mustnot be disappointed.
Welcome partners from all over the world to visit and negotiate business!
Certifications
Packaging & Shipping
FAQ
1. How is the quality of your products?Our products are manufactured in strict accordance with national and international standards, and we test each product before delivery. If you would like to view our quality certification and various test reports, please contact us. 2. How about price?We are a factory and able to give you the lowest price. Please trust the quotation we would give you, and it is professional one. 3. Why should you chose us?Choosing us happens because of quality, then price, and we can give you both. Additionally, we can also offer professional products inquiry,products knowledge train(for agents), smooth goods delivery, excellent customer solution proposals. 4. How to ensure the interests of buyers?Our company supports ****** online trading, which not only ensures the safety of the buyer's funds, but also guarantees the quality of the goods. From the outbound, to the loading, and finally to the receiving, the whole process is transparent. 5. How to guarantee delivery time?We are a factory with a large inventory of stock, which guarantees that the goods will be shipped within the shortest time from the date of signing the contract. 6. How to get samples?We can provide samples for buyer's testing free of charge, but buyers need to pay for shipping costs.
