CNC Beam Panel Saw Cutting Machine with Computer for Wood Panel

Product Description

Technical Paremeters

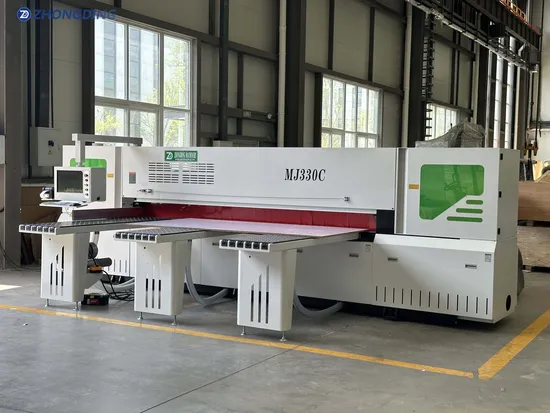

MJ330C CNC BEAM SAW MACHINE

Model	MJ330C	MJ380C
Sawing length	3300mm	3800mm
Sawing thickness	80mm	80mm
Dia. of main saw blade	355mm	355mm
Rotate speed of main saw blade	3950/4500 rpm	3950/4500 rpm
Dia. of grooving saw blade	180mm	180mm
Axis Dia. of grooving saw blade	30mm	30mm
Rotate speed of grooving saw blade	6300 rpm	6300 rpm
Saw carriage forward speed	0-120 m/min	0-120 m/min
Saw carriage back speed	0-120 m/min	0-120 m/min
Head saw motor	15kw	15kw
Grooving saw motor	2.2kw	2.2kw
Saw carriage drive motor	1.5kw	1.5kw
Automatic feeding motor	1kw	1kw
High pressure blower motor	3kw	3kw
Automatic feeding speed	0-40 m/min	0-40 m/min
Operation pressure	5-7kg/cm	5-7kg/cm
Workbench height	850mm	850mm
Net weight	4000kg	5300kg
Dimensions (L*W*H)	6100*6200*1700mm	6450*6800*1900mm

Product Details

Air floating platform under pressurebeam,avoiding board scratchingand assuring smoother board
movement.
Air floating platform under pressurebeam,avoiding board scratchingand assuring smoother board
movement.
Saw height independent lifting system
Saw height independent lifting system
Saw height independent lifting system
Imported electrical parts
