Hot Sale Container Turnover/Tilting Machine Double/Single Lane 180/90 Degree 20FT Container Tipper/Turner/Tilter with High Quality

Product Description

Product Description

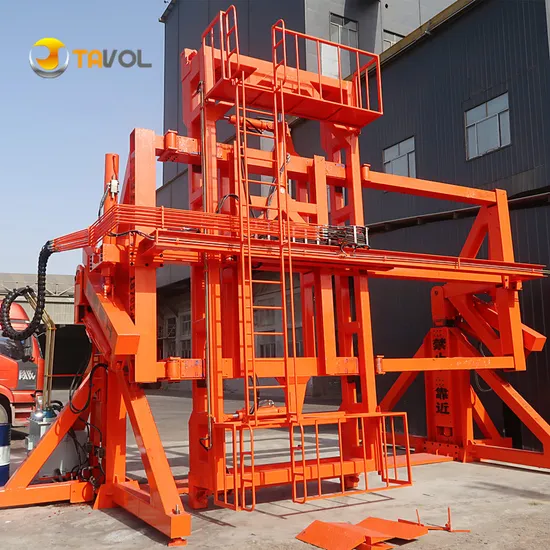

The container tilter adopts full hydraulic operation, which is safe and efficient. The auxiliary safety device has complete functions and can be customized intelligent remote control operation,Dynamic measurement and weighing, remote network monitoring.
It has been widely used in grain, coal,cement, lime, chemical industry, port, railway freight yard and other warehousing and logistics transportation industries,effectively solving the problems of inadequate packing, high labor cost, low packing efficiency and other problems existing in the current container bulk loading and unloading.
Our Advantages
Advantages of medium turnover container turnover machine compared with traditional equipment: 1. The container can be placed vertically and loaded to the maximum extent.
2. Shorten the packing time by 2-3 times and improve the efficiency of packing.
3. Full hydraulic control, simple operation, safe and reliable.
4. Reduce the packing personnel, only one person can operate.
5.Significantly reduce the cost of packing, improve the profits of enterprises.
6. Effectively reduce dust pollution, in line with the national environmental protection policy.
7. By adding the function modules of remote control system, weighing system and
networked control system, the customized requirements of different customers can be realized.

Product Parameters

Model		FZJ35-SS	FZJ35-SD	FZJ35-DS	FZJ35-DD
		Double Lane Double Side	Double Lane Single Side	Single Lane Double Side	Single Lane Single Side
Aplicable to container size		20GP container
Moving way		Piggyback Movable
Rated loading capacity		35T
Minimum height of liting point		3780mm
Hoisting height		800mm
Slide distrance	left &right	2600mm		350mm
	forward&back	600mm
Tilting angle		180'	90'	180'	90'
motor power		18.5KW
Rated working voltage		380V
Working pressure of hydraulic system		25Mp
Quantity of cylinder		12Pieces	10Pieces	11Pieces	9Pieces
Overall dimension		9200*6050*5550mm
Weight		15T	14T	13T	12T
Optional		* Weighing system * Vibrator * Fuel tank heating system * Hydraulic oil cooling system * Remote Control System
Different Types And Functions Of Container Turnover Machines Can Be Customized According To Customer Needs

Different Models

FZJ35-SS Double Lane Double Side
Loading Capacity:35T
Motor Power:18.5KW
Hydraulic System Working pressure:25Mpa
Tilt Angle:0--180°
FZJ35-SD Double Lane Single Side
Loading Capacity:35T
Motor Power:18.5KW
Hydraulic System Working pressure:25Mpa
Tilt Angle:0--90°
FZJ35-SS Single Lane Double Side
Loading Capacity:35T
Motor Power:18.5KW
Hydraulic System Working pressure:25Mpa
Tilt Angle:0--180°
FZJ35-DD Single Lane Single Side
Loading Capacity:35T
Motor Power:18.5KW
Hydraulic System Working pressure:25Mpa
Tilt Angle:0--90°
