Warehouse Metal Foldable Wire Mesh Container

Warehouse Metal Foldable Wire Mesh Container

US$58.00
100-199 Pieces
US$55.00
200+ Pieces

Basic Info.

Model NO.
LS-WMC
Load Capacity
600-1200kg
Folded
Folded
Mesh Spacing
50X50mm and 50X100mm
Wire Diameter
4.8mm to 6.4mm
Feet Height
100 or 120mm
Scale
Medium Duty
Wire diameter
5.8 mm and 6.2mm
Welding
Full Welding
Goods Name
Wire Mesh Container
Feature
Foldable and Stackable
Processing
Welded Wire Mesh Further Processing
Foot Design
with Casters or U Shape Foot
Transport Package
Pallets
Specification
according to clients requirement
Trademark
LS
Origin
Anping Hebei, China
HS Code
87168000
Production Capacity
5000 Pieces/ Day

Product Description

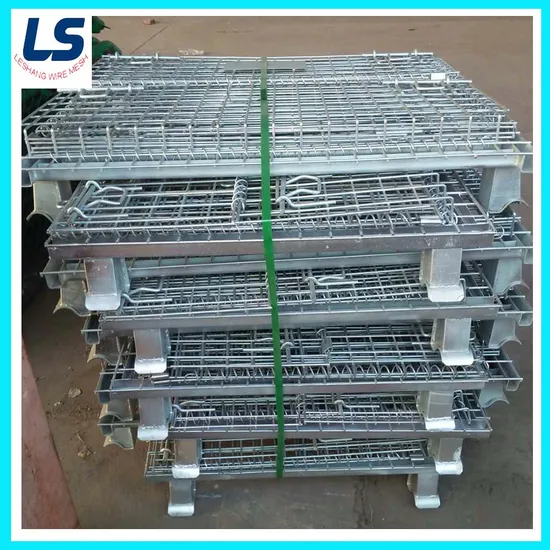

Wire container is also known as storage cage, butterfly cage and warehouse cargo cage. It is a kind of metal cage with network structure used to store goods. TAWINER Wire Container Company's products have the features of fixed capacity for storage, neat stack, intuitive storage, and convenient for stock inventory.
the bottom is reinforced by U-shaped steel beam, high strength, high load capacity, can be stacked four layers, achieving a three- dimensional storage. Wire container with casters can facilitate the turnaround in the workshop
Our wire containers are widely used in warehouse, workshop, logistics distribution center, and supermarket.
Additional accessories:
Casters.
Caster brakes.
Full drop gate.
Swing gate.
Fork pockets.
Fork stirrups.
Lid.
Divider.
Runners.
Label card.
Surface treatment: electro-galvanized (zinc coating thickness: 6 - 8μm), hot-dip galvanized (zinc coating thickness: 35 - 90μm), PVC coated, painting colors you chose.
Stack-ability: 3 or 4.
Standard: ISO9001.
Packing: in bulk bundled by steel strips.
Item No. External dimension (L × W × H) (mm) Internal dimension (L × W × H) (mm) Wire diameter (mm) Mesh gauge (mm) Loading capacity (kg) Self-weight (kg)
A-1 800 × 600 × 640 750 × 550 × 500 4.8 50 × 50 400 20
5.3 600 23
5.6 700 27
5.8 800 29
A-2 800 × 600 × 640 750 × 550 × 500 5.8 50 × 100 600 25
A-3 800 × 600 × 640 750 × 550 × 500 6.3 50 × 50 1000 32
A-4 1000 × 600 × 640 950 × 550 × 500 6.0 1000 37
A-5 1000 × 800 × 840 950 × 750 × 700 6.0 1200 49
A-6 1200 × 800 × 840 1150 × 750 × 700 6.0 1200 55
A-7 1200 × 1000 × 890 1150 × 950 × 750 6.0 1500 65
B-1 1000 × 800 × 840 950 × 750 × 700 4.8 600 30
5.3 800 35
5.6 1000 42
5.8 1200 44
B-2 1000 × 800 × 840 950 × 750 × 700 5.8 50 × 100 1000 39
B-3 800 × 600 × 640 750 × 550 × 500 6.4 800 29
1000 × 800 × 840 950 × 750 × 700 6.3 50 × 50 1500 51
B-5 1000 × 800 × 840 950 × 750 × 700 6.4 1500 55
1000 × 800 × 490 1000 × 800 × 350 6.4 1000 40
B-7 1200 × 1000 × 890 1150 × 950 × 750 6.4 2000 71
B-9 1200 × 800 × 840 1150 × 750 × 700 6.0 1500 55
C-1 1200 × 1000 × 890 1150 × 950 × 750 5.6 1300 53
5.8 1500 60
C-2 1200 × 1000 × 890 1150 × 950 × 750 5.6 50 × 100 800 48
5.8 1000 53
800 × 500 × 540 750 × 450 × 400 4.8 25 × 50 500 25
C-3 1200 × 1000 × 890 1150 × 950 × 750 6.3 50 × 50 2000 68
C-4 1200 × 1000 × 890 1150 × 950 × 750 5.6 50 × 100 800 48
C-5 1000 × 800 × 840 950 × 750 × 700 4.8 50 × 50 500 37
C-7 1200 × 1000 × 890 1150 × 950 × 750 4.8 500 44
D-7 1200 × 1000 × 890 1150 × 950 × 750 6.0 100 × 100 500 50
S-5 1000 × 800 × 840 950 × 750 × 700 6.4 50 × 100 1000 47
S-6 1200 × 800 × 840 1150 × 750 × 700 6.4 1000 56
S-7 1200 × 1000 × 890 1150 × 950 × 750 6.4 1200 62
