Product Description

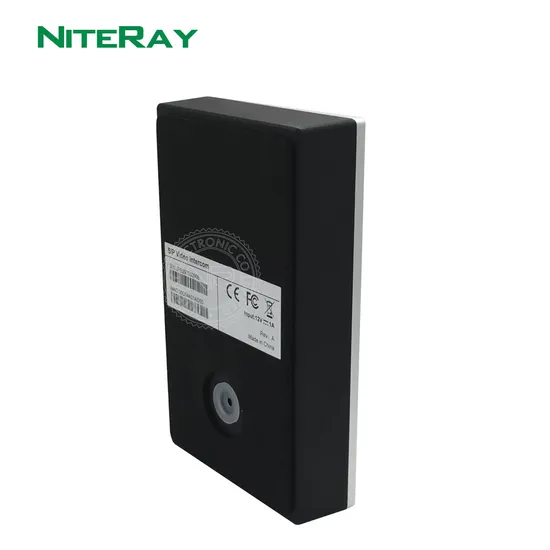

Q514 SIP Intercom & Audio Door Phone The Q514 SIP Video Intercom is designed for outdoor scenes with high reliability, HD Audio/Video, and IP65/IK10 protection grade. It combines security, audio/video intercom and broadcasting functionalities and offer the best communication solution for users.
Highlights
-- Built-in HD camera with infrared night vision, adopt H.264 codec?
-- HD voice speech quality with built-in 3W speaker and Acoustic Echo
Canceller (AEC)
-- IP65 waterproof and dustproof
-- IK10 anti-collision with robust die-cast aluminum frame
-- Anti-tamper- alarming as long as the cover is apart from the housing, and reporting to the control center at the same time
-- -40°C to 70°C wide range temperature adaptability
-- Built-in 2 short-in detect port and 2 short-out control port
-- Support online management and upgrade
-- Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.
Datasheet:

Generic		Audio
2 SIP Lines		Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB
Full-duplex handsfree(HF)		Wideband Codec: G.722
Intelligent DSS Keys (Speed Dial/intercom etc)		Full-duplex Acoustic Echo Canceller (AEC, 96ms tail-length
Auto answer		Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/
Intercom function		Background Noise Estimation (BNE)
Industrial Standard: IP65&IK10, CE/FCC		Packet Loss Concealment (PLC)
		Dynamic Adaptive litter Buffer up to 300ms
Intercom Function		DTMF: In-band, Out of Band DTMF (RFC2833) / SIP INFO
Dynamic multicast function
Support ONVIF		Deployment & Maintenance
Support customized DSS Keys		Auto-Provisioning
Network Time Synchronization		Web Management Portal
Action URL / Active URI		Web-based Packet Dump
		Configuration Import and Export
Video		Firmware Upgrade
Sensor: 1/2.7" color CMOS		Syslog
2 Megapixels
Video codec: H.264		Physical Specifications
Resolution: main stream 1280×720@25fps		1 DSS button (speed dial button)
Substream 704×576(D1)@25fps		1 RJ45 port
Viewing angle: 112° (H), 84° (V)		1 audio output interface
Minimum illumination: 0.1Lux, support infrared illumination		1 recording output interface
		2 short circuit input interface
Networking		2 relays: MAX DC30V/2A, AC125V/0.5A
10/100Mbps		Active switching output: 12V/500mA DC(only 1 relay support)
IP Configuration: Static / DHCP / PPPoE		2 indoor magnetic switch
Network access authority authentication: 802.1x		1 tamper alarm switch
VPN: L2TP / OpenVPN		Power: DC12V/1A or PoE
		Housing material: aluminum alloy shell
Protocols		Protection level:IP65 and IK10
SIP2.0 over UDP/TCP/TLS		Installation: Wall-mounting
RTP/RTCP/SRTP		Working temperature: -40 ~ 70°C
STUN		Storage temperature: -40 ~ 70°C
DHCP/LLDP/PPPoE/802.1x		Relative humidity: 10% - 90%
L2TP /FTP/TFTP/HTTP/HTTPS/SNTP		Equipment Dimension: 195x120x34mm
OpenVPN		Packing Dimension: 260x165x62mm
TR-069		Outer CTN Dimension: 348x328x280mm(10 PCS)
