Monthly Deals 2.5m Polishing Machine for Metal Pipe Polishing of Inner Diameter

Product Description

3.0m polishing machine for metal pipe polishing of inner diameter
Product Description

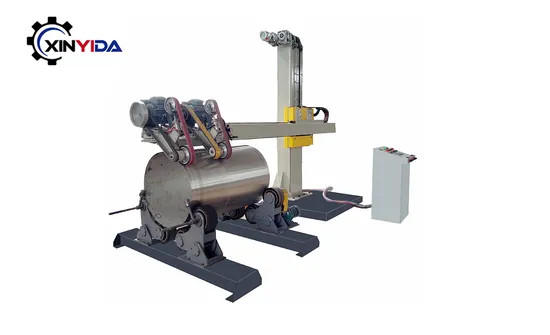

Use thousand impeller or cloth wheel, hemp wheel. The beam is adjusted up and down to adjust the position of the grinding head. The beam is fixed to the left and right, the base of the equipment is travelling. The motor is placed at back of machine. The inner joint of the beam is connected, the rear end has a cylinder hinge to realize the floating, and the front part is mounted with the grinding head to polish.
Main Technical Parameters

Machine dimension	L*W*H(in: mm): 4500*1600*3080
Rotary table dimension	L*W(in: mm): 2000*1500
Machine weight	2500KGS
Input power	5.4KW
Control system	PLC/CNC
Expendable items	Abrasive Belt, Hemp Wheel, Cloth Wheel, Thousand Impeller, and etc.
Machining accuracy	surface roughness Ra≤0.2μm
Producing efficiency	10m2/h

Specification of workpieces:

Workpiece size	Diameter	300mm-1000mm
	Max. length	3000mm
	Max. Weight	3000KG

Product Features:
High efficiency Expendable items Easily Exchange Professionally designed Floating structure of grinding head Easily Operating Technical support
Packaging Details
1.PE film cover on machine.
2.Carton protection in Plywood case.
3.Or based on your requirements.
Port
Shanghai Port / Nanjing Port / Customer Demand
Technical Service:
1) Design rational process for customers according to their product positioning.
2) Help customers carry out technological transformation on the entire process to improve their production efficiency and capacity.
3) Customize polishing machine configurations and other manufacturing equipment for customers; provide spare parts to equipment users.
4) Help customers test, inspect and analyze new processes, and offer reasonable suggestions and improvement proposals.
5) Improve customer operation on polishing equipment; train their ability to use the equipment and improve their application efficiency.
6) Provide software train for customers and software design of special patterns.
7) Provide processing service for special products.
8) Provide professional designers of technological application to equipment users.
9) Provide technical advice, equipment maintenance and repair services.
After-sales Service:
• Free on-site installation and commissioning. (Customer provides air ticket + accommodation)
• 24-hour service hotline; providing free instruction and answering your questions.
• Life-time maintenance; one-year warranty. After warranty, we provide reasonable prices of spare parts and service.
• Once a year on-site free maintenance. (Customer offers airfare + accommodation, or completed by our local agent)
• Comprehensive and systematic technical training, to ensure your correct operation of the equipment.
