paraffin wax pellet making machine /Paraffin Pellet Machine/resin granulator machine

Product Description

Product Description

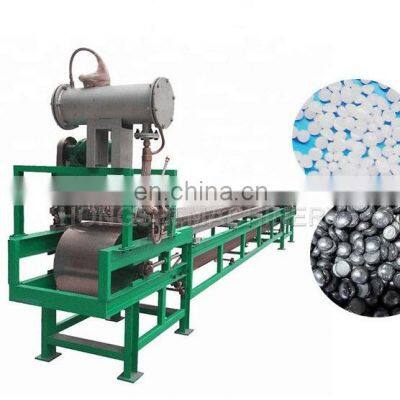

Paraffin wax pellet making machine Melt granulator making machine resin granulator machine Wax Granulator Making Machine Melting material, through material distributor, drips down to the steel belt which is moving evenly. Under the belt, there are continuous sprayer and cooling device which can cool, solidify and pelletize material on belt as soon as possible. According to material feature and process requirements, outward turning, rotating, reciprocating, gate types are available for your choice. Based on material feature and use requirements, material distributing forms like incontinuous dripping, continuous strip, full-width overflowing are available, and with hemispheric, bar, flake products.Specification: Model JXSP-60Machine width600mmMachine length12000mmSize of mould 2.2mmSize of products 4-8mmProduct’s shape hemisphericalCapacity100-120kg/hour for paraffin 200-300kg/hour for resin 200-300kg for RDMotor0.7 m3/h 5kw+1.5kwVoltage 380V,50HZ,3 phazeWater pumppressuer: 0.3mpa water flow: 15-20 m3/h (equipped by user) Machine photo: Detailed Images
