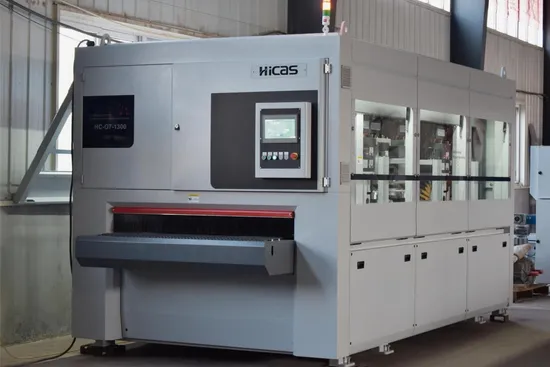

High Quality Automatic Polish Brush Sanding Machine

Product Description

High Quality Automatic Polish Brush Sanding Machine Product Description
Advantages:
1. The first and second sanding units are horizontal.It can sanding from left to right and from right to left . This structure has excellent polishing effect on the surface and corners . 2. Fourth and fifth sanding units are rotary discs.These are our company's innovative design with national patents. Large discs drives small discs,they are on revolution and rotation respectively. Compared with the ordinary disc sanding unit on the market, it is cleaner and more uniform, it can achieve no dead corner polishing.Especially it has a good polishing effect on grooves. This is also a prominent advantage of our equipment compared with others on the market.Besides,these discs adopts the high speed disassembly structure.It can effectively shortens the replacement time of the sand paper.This structure is more efficient than the traditional structure.
3. The third, sixth and ,seventh,eighth,ninth sanding units adopt spiral rollers to finish the whole rough and fine sanding .It can sand from front to back and from back to front. The spiral rollers are equipped with different sandpapers and they have different sanding rotation directions.
4. The sanding strength of each sanding unit can be adjusted independently, it can be adjusted slightly according to the product process to ensure the max combination between sanding rollers and workpiece. This can greatly improve the sanding effect. Independent lifting structure makes the sanding process more stable.And there is sanding display for the sanding depth,it makes the operation more visual. ( there is optional memory function ,so that you don't need to adjust it each time for different workpieces). 5. The speed of each sanding unit can be adjusted independently, it can improve the sanding quality effectively , and it can prevent damage to the shape and paint leakage.
6. Each sanding unit cooperates with the swing system ,it makes the working range wider and more uniform, and it can avoid scratches caused by long-time sanding on one position.
7. Each sanding unit is equipped with a humanized pulling design , which makes it easier to replace consumables.
8. Each sanding unit is removable .This structure is more portable to replace the sanding paper and it is convenient for maintenance.
9. Large diameter sanding roller structure , matched with high quality sand paper ,Mexico sisal, softer and flexible, and it is easier to sand the complex design products.

Model	HC-G7-1300
Max working width	1300mm
Working thickness	100mm
Adjustable brush speed	80-450 rpm(can adjust)
Spiral roller speed	80-550 rpm(can adjust)
Conveyor speed	0-10m/min(can adjust)
Each group of the lifting power	6*0.25kw
Integral lifting power	1.1kw
Disc brush motor power	2*0.55kw
Disc brush motor power	2*1.5kw
Spiral roller motor power	3*2.2kw
Horizontal roller motor power	2*1.1kw
Conveyor motor power	2.2kw
Swing motor power	6*0.37kw
Total power	18.9kw
Screw roller qty	1 set
Screw roller diameter	380mm
Disc brush qty in each group	3*3 set
Disc diameter	180mm
Horizontal roller qty	8 sets
Horizontal roller diameter	330mm
Dust outlet	11*100mm
Air speed	22-30m/s
The weight	6500kg
The overall dimensions	4960*2140*2325mm

Detailed Photos
The structure adopts left and right rolls + 360 degree discs+front and rear roller
The sandpaper is more fully polished from coarse to fine,and the sanding effect can be more than 90%.The same abrasive belt can be used as unpainted wood and painted wood.
The 1st and 2nd sanding rollers can be oscillated to the left and right to ensure polishing effect,and the hollowing plate can be polished to 3-5 mm.The diameter of the roller is 350mm,which is softer and thicker,making the contact surface easier to polish.
Disk Technology Upgrade
4th & 5th sanding units are rotary discs.These are our company's innovative design with national patents. Large discs drives small discs,it can achieve no dead corner polishing.Especially it has a good polishing effect on grooves. Besides,these discs adopts quick disassembley technology.
Spiral Roller Technology Upgrade
The 3rd, 6th and ,7th,8th,9th sanding units adopt spiral rollers to finish the whole rough and fine sanding .It can sand from front to back and from back to front. The spiral rollers are equipped with different sandpapers and they have different sanding rotation directions.

Height Display + Independent Up and Down
The sanding depth of each sanding unit can be adjusted independently. This can greatly improve the sanding effect. Independent lifting structure makes the sanding process more stable.And there is sanding display for the sanding depth,it makes the operation more visual. (Note:G7 and G9 model can choose memory function,so that you don't need to adjust it each time for different workpieces).
Spare Parts
Electric appliance Germany Siemens
The international first-class brand has long service life and stable performance,it helps the equipment to run well.It has low failure rate, and better improves the sanding efficienc. we believe that the industry leader makes he quality assurance
Frequency converter Taiwan Shiln
Strong anti-interference ability, stable output signal and precise frequency adjustment, effectively ensuring smooth operation of the equipment and better improving the grinding effect of the equipment.
Motor Japan SEND
The SEND motor uses a hypoid gear design.It combines the low noise of the helical gear with the high efficiency of the bevel gear.Compared with the worm gearbox, the SEND has a longer service life.
Belt Continental From Germany
Taiwan Shiln frequency converter has strong anti-interference ability, stable output signal and accurate frequency adjustment, which can effectively ensure the smooth operation of the equipment and better improve the grinding effect of the equipment.
Reducer Taiwan ZhouYi
The reducer can be accurately positioned and fully demonstrates the performance of the high-precision servo motor. It adopts a closed filling structure, ultra-quiet, oil-proof and waterproof, and can fully utilize the performance of the reducer in any environment.
Guide bearing Taiwan HIWIN
TheTaiwan HIWIN 30mm linear guide rail is equipped with a scraping device outside the slider.With multi-layer dust protection,it prolong the service life effectively. Due to the linear guide rail bundle structure, it can bear the loads from up, down, left and right at the same time.
Automatic lubrication
The whole machine can refuel automatically, which can effectively avoid equipment damage caused by untimely refuelling.It is easy to lubricate and prolong the service life and accuracy of the machine.
Final Product
What we can sand:
We can provide sanding solutions for variety of the wood products.
Sanding effect: Company Profile
1. We have our own woodworking machinery factory.
2. 8 years exportation experience, have customers in more than 40 countries.
3. Engineer team with +20 years experience.
4. Diamond supplier in made-in-china.
5. Our services
Pre-sales service: To provide customers with the best on-site solutions with the best products and technologies. In order to better serve our customers, we have established a complete pre-sales service support system to provide the most suitable models according to customer needs. Equipment and solutions, together with customers to discuss and improve the customer's production process, processing technology problems.
After-sales service: HICAS after-sales customer service team, responsive. We can solve various problems for customers in the shortest time.
Tracking service: We track and record the equipment purchased by each customer and return to it regularly. Understand customer usage and improve feedback and feedback, and strive to be responsive to every customer. Solve every sanding problem.
6.Our products are widely sold in made-in-china.
7.Customer feedbacks and visits
8.Our company and products have been verified onsite by SGS Group
We are looking for Good customers like you! and Distributor or Agents Wanted!!!
9.Our CE Certifications
10.Our Packaging & Shipping
FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer's account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4.What technical support do you offer?
a.Technical support by phone, email or WhatsApp/Skype around the clock.
b.Friendly English version manual and operation video.
c.Engineer available to service machinery overseas.
6. Can you customized the machine?
Our machines can be customized made according to buyers' request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like edge banding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian.etc.
