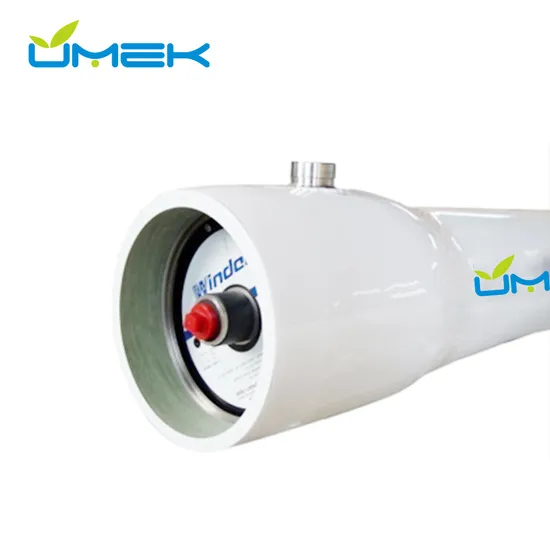

Reverse Osmosis Membrane Housing/ RO Pressure Vessel

Product Description

Reverse Osmosis Membrane Housing/ Ro Pressure Vessel Product Description Membrane pressure vessels characteristic:
Adopt imported material to improve the anti-wearable property
Adopt special processing technology to make the inside of the products more smooth
Muiti-ports are available according to customer requirements for easy installation
UMK series adopt upscale automobile baking vamish craft to ensure the smoothness and brightness of the products
Outstanding corrosion resistance and anti-aging property,Well heat-insulting property and anti-xidation propety
Spare parts:
End plate adopts aerial processing technique, eficiently improving the intensity and capacity to resist deformation
Seal kit adopts special structure and technique,efcienty enhancing the leak tightness
End-plate made of aluminum alloy.enhance the ability to resist deformation
Seal kit adopts environmental material to assure the leak tightness and high water quality, meanwhile to improve its anti-aging capacity
Inlet and outlet are made of high quality stainless stee 316L materials, which have a strong ability to resistance corrosion, easy to
disassembly, assembly, maintenance
Quality Assurance:
Burst test with 6 times of its design pressure
100,000 times cycle test
100% quality assurance test with 1.1 times stage elevation of hydrostatic pressure

Product Name:	FRP ro reverse osmosis membrane filter pressure vessel housing
Material:	FRP
Pressure:	150/ 300/ 450/ 600/ 1000/ 1200psi
Size:	4040 and longer
Connection:	End port or side port
	Let's begin to communicate Contact us

Model	PS PSI(MPa)	Connection	Membrane size	Number of elements
UMK-80S150	150(1.0)	SIDE	8040	1-8
UMK-80S300	300(2.1)	SIDE	8040	1-8
UMK-80S450	450(3.1)	SIDE	8040	1-8
UMK-80S600	600(4.1)	SIDE	8040	1-8
UMK-80S1000	1000(6.9)	SIDE	8040	1-8
UMK-80S1200	1200(8.4)	SIDE	8040	1-8

Model	PS PSI(MPa)	Connection	Membrane size	Number of elements
UMK-80E150	150(1.0)	END	8040	1-8
UMK-80E300	300(2.1)	END	8040	1-8
UMK-80E450	450(3.1)	END	8040	1-8
UMK-80E600	600(4.1)	END	8040	1-8
UMK-80E1000	1000(6.9)	END	8040	1-8
UMK-80E120	1200(8.4)	END	8040	1-8

Model	PS PSI(MPa)	Connection	Membrane size	Number of elements
UMK-40S150	150(1.0)	SIDE	8040	1-4
UMK-40S300	300(2.1)	SIDE	8040	1-4
UMK-40S450	450(3.1)	SIDE	8040	1-4
UMK-40S600	600(4.1)	SIDE	8040	1-4
UMK-40S1000	1000(6.9)	SIDE	8040	1-4

Model	PS PSI(MPa)	Connection	Membrane size	Number of elements
UMK-40E150	150(1.0)	END	4040	1-4
UMK-40E300	300(2.1)	END	4040	1-4
UMK-40E450	450(3.1)	END	4040	1-4
UMK-40E600	600(4.1)	END	4040	1-4
UMK-40E1000	1000(6.9)	END	4040	1-4

Detailed Photos
FAQ 1.Q:Are you a factory or trading company?
A:Yes, we are a manufacture with designing, manufacturing, marketing and exporting.

2.Q:How do you usually pack the exported goods?
A:We usually use bubble bag, then wooden box with pallet.

3.Q:Could we choose color?
A:yes, you can choose White Blue Orange Red Green

4.Q:What's your warranty?
A:Our warranty is 1 year. But normally, our RO housing can working 5 years before repair.
