Factory Price Laboratory High Efficiency Mining Equipment Ore Wet Grinding Ball Mill

Product Description

Samy Laboratory High Efficiency Mining Equipment Ore Wet Grinding Ball Mill

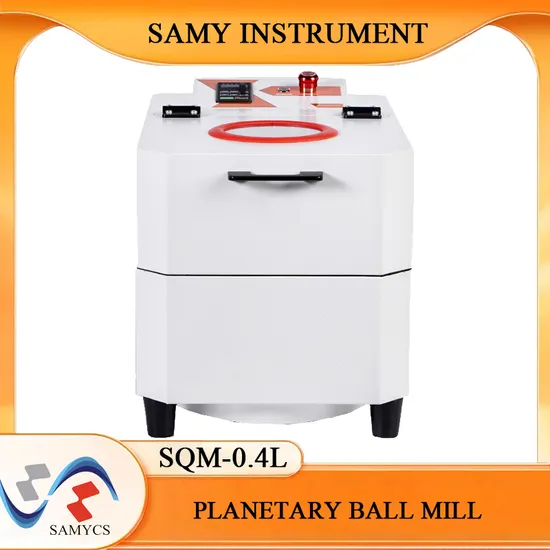

SQM-0.4L planetary ball mill is an essential device for mixing, fine grinding, sample preparation, nano-material dispersion, new product development and small batch production of high-tech materials.
Product Parameters

Model	Sqm-0.4L Lab Scale Bench Top Powder Grinder Grinding Machine Planetary Ball Mill
Capacity	100ml*4 jars=400ml=0.4L
Style	Planetary
Grinding ways	Dry grinding, wet grinding, vacuum grinding, low temperature grinding
Loading and unloading method	Intermittent type
Transmission mode	Gear drive
Speed control mode	Frequency conversion speed regulation
The revolution speed(r/min)	5-400
Rotation speed(r/min)	10-800
Rated power(KW)	0.55KW
Run time(h)	0-9999
Feed particle size(mm)	<15mm, hard="" material="">
Grain size(μm)	0.1μm,or 100nm
Net Weight	32KG

Product Description
Product Features
1. Two windows for you to see and control the grinding process better, one in the front of the machine and another on the top of the machine.
2. Back and side radiating holes for better heat dissipation and so as to prolong the machine working life.
3. With small size, light weight, low noise.
4. Can be operated continuously, one-way running, automatic positive and reverse continuous and regular operation.
5. Can be dry grinding, wet grinding, vacuum grinding, protection of the atmosphere.
6. Main belt tightness adjustable, long-term use is not easy to slip, greatly extended the service life.
7. The planetary ball mill appearance original box clamshell (or open), easy to operate, cover with safety switch, safe and reliable. Compact structure, beautiful shape, greatly reduce the weight, the whole machine is fully integrated.
8. Adopts the complete rolling friction drive between the metal wheel and the abrasive wheel. The noise and wear to the minimum, and the operation and operation of the gear type ball mill may not appear the phenomenon of breaking and damage, greatly extended the operation of the stability and service life.
Working Principle
Planetary Ball Mill has four ball grinding jars installed on one turntable. When the turntable rotates, the jar axis makes planetary movements, the balls and samples inside the jars are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.
Product Application
1. Agricultural
Plant material, seed, soil, tobacco, wood fiber
2. Biological
Bones, hair, paper towels
3. Ceramic and glass
Ceramic oxide and clay minerals, glass, hydroxyl phosphate
Carbon fiber, catalyst, cellulose, pigments, coatings, plastics and polymers
4. Building materials
Bentonite, cement clinker, polymer, gypsum, sand, stone
5. Environmental research
The mixture, electronic chips, sludge, waste
6. Mineral and metallurgical and metal electrons
Alloys, coal, coke, iron ore, metal oxide, quartz, semi-precious stone, slag, magnetic materials, etc.
Product Accessories Introduction
Grinding jar and ball material: zirconia, silicon oxide, agate, tungsten carbide, stainless steel, high chrome steel, nylon, polyurethane, polypropylene (PP), PTFE, alumina.
Jar volume: 50ml, 100ml, 200ml, 250ml, 500ml, 1L, 1.5L, 2L, 2.5L, 3L, 4L, 5L, 10L, 15L, 20L, 25L.
Ball size: 1mm to 20mm all available
Detailed Photos
Company Profile
Our Company
Changsha Samy Instrument & Equipment Co., Ltd. is a professional high-tech company, engaged in the research & development, manufacturing and marketing of laboratory instruments. We have centrifuge, planetary ball mill, vacuum glove box, vacuum furnace, plasma nitriding furnace, pill make machine and others relative medical and hospital products.
With the tenet of "Quality is Life", our company has established an impeccable quality management system, and taken the lead of our industry passing ISO9001:2008 quality management system certification, IEC 61010-1, CE compliant and ISO13485 medical apparatus and instruments quality management system certification.
Products of our company are widely applied in the fields of manufacturing and scientific research, such as industry, science research institutions, institutions of higher education, central blood banks, hospitals, biological products, pharmacy, bio-chemical examination, agricultural science, environmental protection, petrifaction, etc.
Why We Choose Samy?
1. Established in 2010, we have 10 years' experience and certificates like CE, ISO 13485, ISO 9001 and IEC 61010.2. Our products are of high quality and cheap prices. All the machines have 12 months' warranty.3. Multiple kinds of centrifuges and accessories, there must be one that can meet your needs.4. Professional team from machine design, production to sale. Sales team 24 hrs online.5. High reputation among customers all over the world.6. We have distributors in some countries.7. Accept customize machines according to your requests.8. Fast delivery within 10 days. Always have machines in stock.
After Sales Service
Warranty
12 months.
Technical Support
1. Technical support by phone, email or WhatsApp or Wechat or Skype around the clock.
2. Friendly English version manual and operation video.
Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
You will be able to get freetraining advice towards our machine in our factory.
You will also get free suggestion and consultation, technical support andservice by email/fax/tel and lifetime technical support.
FAQ
1. Q: What's the max jar volume? A: The max jar volume is 100ml. SQM-0.4L mill can also take 100ml regular jars and 100ml vacuum jars.
2. Q: How many jars needed when grinding?
A: The machine has 4 stations, you can use 4 jars for most. Or 2 jars are also acceptable, but when using 2 jars please make sure they are placed opposite to keep balance. 1 jar or 3 jars every time are forbiden.
3. Q: Do you have MOQ request?
A: We accept MOQ as 1 set.
4. Q: What kind of package for the machine?
A: We will use export wooden carton. 5. Q: What are the payment terms?
A: You can pay through T/T, Western Union, Master Card, PayPal, etc.
6. Q: What are the shipping methods?
A: You can choose shipping by air, by sea or by Express door to door.
7. Q: How many days can you deliver?
A: Within 10 workdays after we get the payment.
