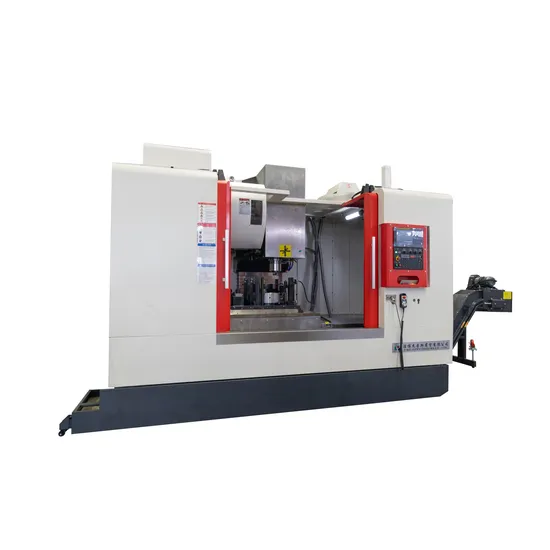

Vmc1160 Vertical Machining Center Meet The Requirements From Rough Machining to Fine Machining
| US$18,500.00-58,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VMC1160
Type
Horizontal Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS
Condition
New
Net. Weight(About)
7000
Spindle Speed
8000
Spindle Taper
Bt40
Maximum Tool Weight
8kg
Table Size
1200X600mm
Tool Magazine Capacity
24t
X/Y/Z Rapid Traverse
32/32/30 M/Min
Distance Between Spindle Center and Colu
650mm
The Maximum Load Capacity
1000kg
Transport Package
Non-Fumigating Wooden Box
Specification
3100*2490*2380
Trademark
Jepps
Origin
China
HS Code
84581100
Production Capacity
100pieces/Year
Packaging & Delivery
Package Size
3500.00cm * 3000.00cm * 2500.00cm
Package Gross Weight
8000.000kg
Product Description
Product DescriptionApplication VMC is suitable for the mechanical procedding and mold making.
And it can adapt to the processing requirment from rough machining to finish machining.
It can also finish many working procedures like milling,drilling,tapping,boring etc. Features
Hot Sale VNC650
1.High quality resin sand 2.Tsiwan spindle 3.Taiwan ball screw and locking nut 4.Taiwan pressure cylinder 5.Japan NSK bearing 6.Germany R+W coupling 7.Automatic lubrication system 8.Chip conveyor at optional
Specification
Technical Parameter:
| Specification | Units | VMC1160 |
| Table size | mm | 1200*600 |
| the maximum load capacity | kg | 1000 |
| Distance between spindle center and column | mm | 650 |
| Distance between spindle end face and worktable surface | mm | 120-720 |
| spindle speed | r/min | 10000 |
| spindle taper | type | BT40 |
| Spindle motor power | kw | 11/15 |
| Max.tool length | mm | 300 |
| Maximum tool weight | kg | 8 |
| Electric capacity | KVA | 18 |
| X/Y/Z Max. feed speed | mm/min | 10000 |
| X/Y/Z Max. Rapid traverse | m/min | 32/32/30 |
| T slot | mm | 3-18*100 |
| Machine dimensions(L*W*H) | mm | 3100*2490*2380 |
| Weight | kg | 7000 |
Detailed Photos
Company Profile:
Packaging & Shipping
FAQ
1.Q: Which trade term I can choose?
A: You can choose FOB,FCA
2.Q: How can I get quotation from you?
A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday.
3.Q: how can I make the payment?
A: We can make the deal on made-in-china online platform, you can pay by T/T . You can also pay to my company business bank account.
5.Q:What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
We want to know:
Please tell us your specific purchasing requirements, so that we can make specific quotations.
