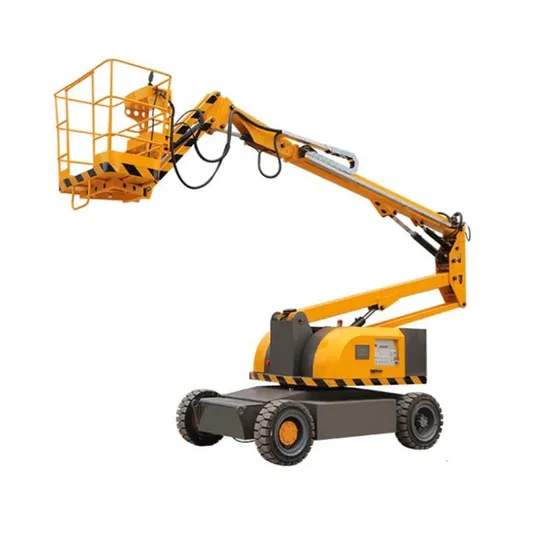

Multi-Functional Efficient&Safe Boom Lift Towable Articulated Wheeled Telescopic Boom Lifts 40m

Multi-Functional Efficient&Safe Boom Lift Towable Articulated Wheeled Telescopic Boom Lifts 40m

US$37,880.00
1-7 Pieces
US$29,680.00
8-14 Pieces
US$19,999.00
15+ Pieces

Basic Info.

Model NO.
YG-BL10; YG-BL12; YG-BL14; YG-BL16
Application
Workshop Crane
Lift Mechanism
Articulated Lift
Carrying Capacity
Special Weight Level
Moves
Self-propelled
Driven Type
Self-Prolled
Running Mode
Moving
Certification
CE, ISO 9001
Transport Package
Wooden Box
Specification
4000mm*2000mm*2000mm
Trademark
YUGONG
Origin
China
HS Code
8428200000
Production Capacity
800sets/Month

Product Description

Overview
Widely Application: Road Light installing, Highway and bridge construction, Housing or other building decoration.
Intelligent and perfect control system features the humanized layout, the operation and maintenance is easy, providing the multiple options and comprehensive safety.
Advantages and highlights:
1. The Max Working Radius is 8.9M, free working scope.
2. Motor rear axle drive driving type, working more efficient.
3. Σ-shaped boom combine and zero tail swing design make it more productive.
4.Advanced motor driven technologies;
5.steering differential control technologies;
6.powerful and steady actions; gradeability up to 30%
Product Paramenters
No. Item Parameter
1 model YG-BL14 YG-BL16
2 maximum working height 15.6m 16.6m
3 Maximum platform height 13.6m 14.6m
4 Maximum working radius 7.49m 8.52m
5 Standard load 230KG 230KG
6 Length (folded state) 6.73m 7.7M
7 width 1.76m 2.28m
8 Height (folded state) 2.13m 2.18m
9 Shaft distance 2m 2.02m
10 Ground clearance 0.23m 0.3m
11 Platform size 1.52*0.77*1.1m 1.52*0.77*1.1m
12 inner turning radius 0.8m 4.8m
13 outer turning radius 3.5m 1.8m
14 Walking speed (folded state) 5.1km/h 6.3km/h
15 Driving speed (raised state) 0.8km/h 1.1km/h
16 Gradeability 30% 45%
17 tire 25*15 33*12
18 Swing speed 0~1/3rpm 0~1/3rpm
19 Turntable rotation 360° 360°
20 Platform leveling Automatic Automatic
21 Platform rotation ±80° ±80°
22 battery 420Ah, 6V*8 420Ah, 6V*8
23 control voltage 12V 12v
24 weight 7000kg 7800kg
25 Walking and steering patterns 4*2*2 4*4*2
