200L Laboratory Pilot Chemical Jacketed Glass Reactor Manufacturer
| US$10,000.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LGR-200L
Type
Reaction Kettle
Material
High Borosilicate Glass
Capacity
101-200L
Structure
Multiple Parallel
Pressure
Negative
Agitator Model
Anchor Agitator
Tower Reactor Type
Plate Tower Reactor
Heating
Oil Circulation Heating
Heat Transfer Structure
Jacketed
Automatic Grade
Automatic
Condition
New
Frame Material
304 Stainless Steel
Jacketed Capacity
28L
Port Number
6ports
Stirring Speed
0-450rpm
Display Data
Speed and Temperature
Sealing Material
PTFE Material
Temp. Range
-80c to 250c
Vacuum Gauge
Oil Vacuum Gauge
Voltage
220V or 110V
Customized
Yes
Transport Package
Plywood Case
Specification
200L
Trademark
LABOAO
Origin
China
HS Code
8419899090
Production Capacity
1000sets/Month
Product Description

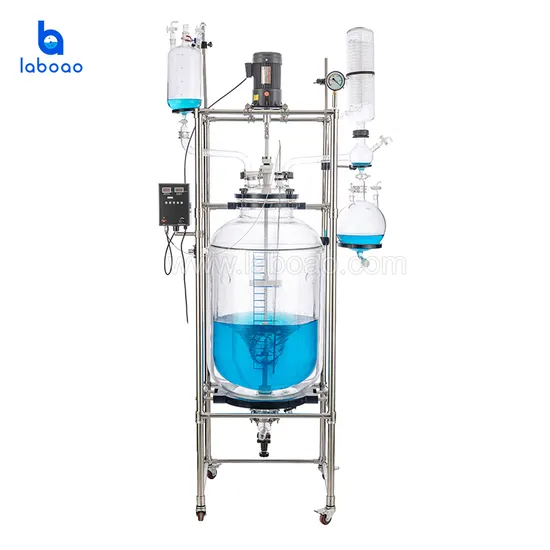

200L laboratory pilot chemical jacketed glass reactor manufacturer
Description:
Jacketed Reaction vessels are used for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Reaction Vessels can be used as an all in one tool for extraction, refinement, distillation, and hemoginization.Consisting of an inner vessel with either one or two jackets, a reactor uses temperature differentials created by a chiller to change it's internal environment. Reaction vessels also operate under vacuum making them ideal for any atmospheric sensitive applications. They can be made out of glass and range in volume from 1L to 200L.
Feature:
1.A full set of glassware with GG3.3 borosilicate glass that is heat/cold/corrosion-resistant.
2.Wide range of temperature operations, from -60°C to 250°C.
3.Solvent-resistant PTFE seal ensure long time durability and operation, sealing is -0.098Mpa.
4.The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.
5.Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.
6.Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
7. Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials. multi-layer stirring blades is optional.
8.The bottom flange discharge port with a Teflon value, aluminum parts flange fixed.
| Model | LGR-200L |
| Glass Material | GG-17 |
| Frame Material | 304 Stainless steel |
| Moving mode | Brake type universal corner wheel |
| Reaction bottle capacity | 200L |
| Jacketed Capacity | 28L |
| Flanged out of the oil circulation port | Low feed high outlet |
| Reaction bottle cover port | 6ports |
| Discharger port distance to ground | 450mm |
| Temp. range | -80-250°C |
| Vacuum | 0.098Mpa |
| Stirring speed | 0-280rpm |
| Stirring diameter | 15mm |
| Stirring power | 750W |
| Voltage(V/Hz) | 220V/50HZ |
| Dimension(mm) | 1300*900*2400 |
| Packing size(mm) | 2300*930*1350 |
| Packing weight(KG) | 190 |
