Sf Series High Efficient Universal Pulverizer
| US$2,000.00-8,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
SF
Crushing Capacity
5-300kg/Hr
Certificate
CE
Material
SS304, SS316L
Spare Parts
Available
Advantage
Easy Operation Better Price
Type
Hammer Crusher
Drive
Electric
Crushing Degree
Intermediate Crusher
Crushing Style
Grinding and Impact
Cutter Material
High-Speed Steel
Tongs′ Features
Universal Tongs
After-Sales Service
Site Service or Online Technical Support
Warranty
All Its Life
Object
Herbs
Transport Package
Export Plywood Case
Specification
550*600*1250mm
Origin
Jiangsu
Production Capacity
50set/Month
Packaging & Delivery
Package Size
86.00cm * 50.00cm * 136.00cm
Package Gross Weight
220.000kg
Product Description

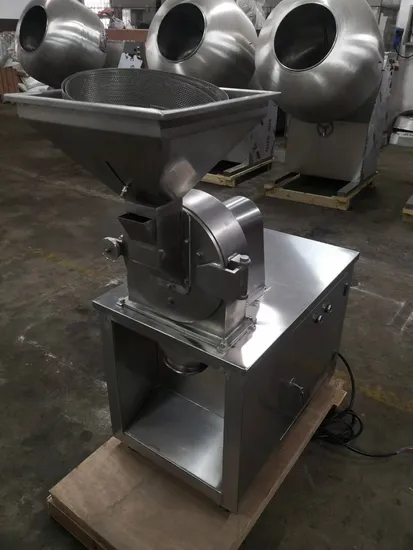

SF Series Universal PulverizerDescripton
This machine utilizes the high--speed relative motion between the moving and regular tooth set, which makes the material crushed through concussion, rub and crush between the materials. The structure of machine is simple, firm and operating steadily and the result of crushing is well, no dust nuisance. The crushed material is discharged directly from mainframe. The different sizes of the granule are gained through replacing different pore sizes of sieve. In addition, this machine is made of the whole stainless steel, surface of the inside of the machine is smooth, which changes the phenomenon of inboard wall coarse and accumulating of powder in the past. It meets national standard even more to make medicines, food, chemical industry, etc, and meet the requirement of GMP.Technical Data
| Model | Rotary speed of main shaft | Fineness (Mesh) | Production capacity | Limit materials (mm) | Using electric distribution | Outline dim. (mm) |
| SF130 | 7000r/min | 10-120 | 2-5kg/h | 5x5x5 | 1.1kw | 560 x 350 x 820 |
| SF180 | 4000r/min | 10-120 | 10-20kg/h | 8x8x8 | 2.2kw | 420 x 600 x 1000 |
| SF250 | 3800r/min | 10-120 | 50-250kg/h | 10x10x10 | 5.5kw | 860 x 500 x1360 |
| SF320 | 3800r/min | 10-120 | 80-300kg/h | 10x10x10 | 7.5kw | 880 x 520 x 1450 |
