Hydraulic Hydrostatic Hydro Pressure Test Pump System

Product Description

Suncenter hydraulic/hydrostatic/hydro pressure test pump
SUNCENTER- Hydraulic test benches are compact and delicacy solution tailored to customer specific requirements with air driven liquid pumps as well as all accessories to be fitted and installed on the frame or in closed cabinet.
To operate this system, the pressure gauges, valves and pressure regulators have to be fitted on panels. The outlet pressure is easily to be set through a simple air regulator. The pump stops automatically when this end pressure is reached and restarts with a slight drop in the outlet pressure or an increase in the air drive pressure. SUNCENTER Hydraulic power packs are available with wide range of pressure ratios make these series of pumps ideal for powering a variety of oil/hydraulic operations. The maximum operating pressure up to 640 MPa.
As the pressure will be generated by means of a pneumatically operated pump,the electric connection will not be necessary. To operate this system, the air driven liquid pump have to be equipped with the air control unit combined filter and water separator, pressure-regulating valve, pressure control gauge as well as manual relieve valve. In this operation, the pump will be mounted to the stainless steel tank in the closed cabinet in a compact and space saving manner. Pressure gauges, valves and pressure regulators will be fitted on panel.
The desired operating pressure can be attained by adjusting the driving air pressure. When the driving air pressure and the output pressure reach the balance, the pump stops filling pressure and the output pressure stays at the preset value. This hydraulic unit can be used for all kinds of pressure testing and test tools for research and test institutes or for other functions requiring a determined pressure.

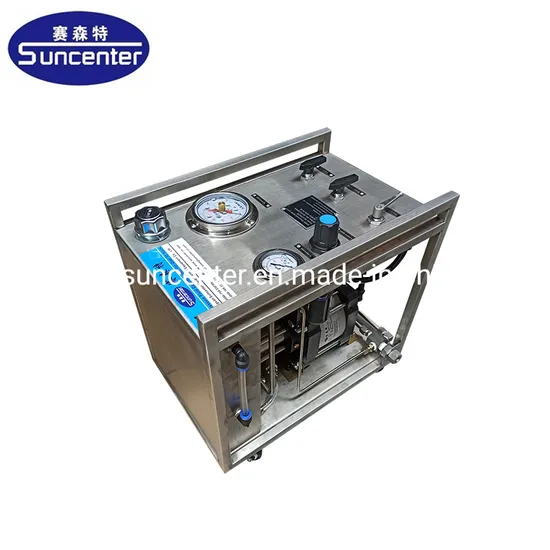

DLS Sereis hydraulic pressure test bench-The hottest selling Model C cabinet
The standard hydraulic test bench including following parts:
Air -driven liquid booster pump
Stainless steel material cabinet (Three models for choosing)
F.R.L combination for driven air (adjusts air pressure, add lubricating oil and filter)
Driven air switch (Pump starting switch), driven air pressure gauge, water tank
Liquid inlet/outlet switch, high pressure liquid guage, unloading valve, interconnecting pipes etc.
And we could also customize it according to clients' special requirement.
DLS-DGG series test bench Technical specification

Model	Pressure Ratio	Driven air pressure PL	Formula to calculate outlet pressure	MAX Outlet Pressure(bar)*	Driven air inlet port	High pressure Outlet port	MAX Flow (L/min)**
DLS-DGGD4	4:1	3-8 bar	4XPL	32	G 1/2	NPT/ZG	70.0
DLS-DGG6	6:1	3-8 bar	6XPL	48	G 1/2	NPT/ZG	29.91
DLS-DGG10	10:1	3-8 bar	10XPL	80	G 1/2	NPT/ZG	18.84
DLS-DGG16	16:1	3-8 bar	16XPL	128	G 1/2	NPT/ZG	12.42
DLS-DGG28	28:1	3-8 bar	28XPL	224	G 1/2	NPT/ZG	7.11
DLS-DGG40	40:1	3-8 bar	40XPL	320	G 1/2	NPT/ZG	4.89
DLS-DGG64	64:1	3-8 bar	64XPL	512	G 1/2	NPT/ZG	3.08
DLS-DGG80	80:1	3-8 bar	80XPL	640	G 1/2	NPT/ZG	2.44
DLS-DGG100	100:1	3-8 bar	100XPL	800	G 1/2	NPT/ZG	1.92
DLS-DGG130	130:1	3-8 bar	130XPL	1040	G 1/2	NPT/ZG	1.47
DLS-DGG175	175:1	3-8 bar	175XPL	1400	G 1/2	NPT/ZG	1.14
DLS-DGG255	255:1	3-8 bar	255XPL	2040	G 1/2	NPT/ZG	0.75
DLS-DGG400	400:1	3-8 bar	400XPL	3200	G 1/2	NPT/ZG	0.48
DLS-DGG510	510:1	3-8 bar	510XPL	4080	G 1/2	NPT/ZG	0.65
DLS-DGG800	800:1	3-8 bar	800XPL	6400	G 1/2	NPT/ZG	0.42

DLS-M series test bench Technical specification

Model	Pressure Boost Ratio	Driven air pressure PL	Formula to calculate outlet pressure	MAX Outlet Pressure(bar)*	Driven air inlet port	High pressure outlet port	MaxFlow rate(L/min)**
DLS-DGM4	4:1	3-8 bar	4XPL	32	G 1/2	NPT/ZG	15.36
DLS-DGM100	10:1	3-8 bar	10XPL	80	G 1/2	NPT/ZG	7.15
DLS-DGM16	16:1	3-8 bar	16XPL	128	G 1/2	NPT/ZG	4.59
DLS-DGM30	30:1	3-8 bar	30XPL	240	G 1/2	NPT/ZG	2.53
DLS-DGM44	44:1	3-8 bar	44XPL	352	G 1/2	NPT/ZG	1.41
DLS-DGM64	64:1	3-8 bar	64XPL	512	G 1/2	NPT/ZG	0.95
DLS-DGM100	100:1	3-8 bar	100XPL	800	G 1/2	NPT/ZG	0.64
DLS-DGM170	170:1	3-8 bar	170XPL	1360	G 1/2	NPT/ZG	0.37

Dongguan Suncenter Fluid Control Equipment Co., Ltd is the member company of Suncenter Group, which is located in Dongguan city of Guangdong province in China. With more than 15 years experiences in fluid pressure exchange and controlling field, we provide various kinds of pneumatic and hydraulic booster pumps, systems and solutions to the customers all over the world. Due to our best product quality, competitive price as well as excellent after-sales service, we have win a great reputation in the field.

Our main products including:
High Pressure Booster Pumps (Air Driven Gas Booster Pump, Air Driven Liquid Pump, Air Amplifiers)
High Pressure Systems (Gas/Liquid Booster Stations,FM200 filling machine, Tube Expanding Machine)
High Pressure Test Equipment(Hydraulic/Burst/Hydrostatic test machine,Cylinder test machine,
Valve test bench,Impulse Testing Machine, etc.)

Product Application
Oil Industry, Gas Industry, Chemical Industry, Fire Fighting, Research Institutions etc.

Our service
13 months' free warranty since the purchasing date and free technical support during lifetime
