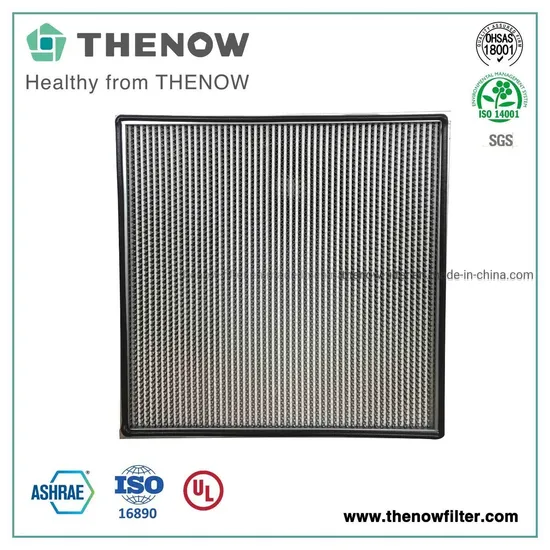

H13/H14 Deep Pleated HEPA Box Filter for Hospital

Product Description

Foreword: Thank you for your interest in advance!
It has been 16+ years since we processed the first HVAC air filter.
You can find various replaceable filters for Camfil, AAF etc. We have all kinds of frames and filter media available. As for prefilter and secondary filters, we buy the filter media of optimum quality from Chinese native market. Their quality is stable and super. As for the HEPA filters, the glassfiber media is from American Lydall and Suzhou H&V. We control the quality from the source.
There are plenty of testing machines in our laboratory including filter media testing and completed filters tested.
Welcome to have a Virtual tour to our factory by clicking the following:
https://thenow-filter.en.made-in-china.com/
Product Description H13/H14 Deep Pleated HEPA Box Filter for hospital
>Structure

External Frame	Aluminum Alloy/GI/Stainless Steel
Sealant	Polyurethane
Separator	Alumininum foil or Clapboard
Filter media	Fiberglass/Ultra fine fiberglass/PP
Maximum Operating temperature	8°C
Maximum Operating Huminity	100%
Efficiency	≥99.95%@0.3micron;≥99.995%@0.3micron H13/H14

>Applications:
HEPA filters are extensively used in the terminal filtration of the civil or industrial cleansing places in the industries such as electron, semiconductor, precision mechanism, pharmacy, hospital and food, etc., which require relatively high cleanliness factors. It is suitable to filtrate for clean room and clean factory workshop with dust particle diameter less then 0.3-0.5um.
>Sample data:

Item	Outer Dimensions (L*W*D)inch	Filter media	Efficiency	Filter Area(m2)	Airflow (m³/h)	Initial pressure drop(pa)	Final pressure drop(pa)	Air velocity (m/s)	Operation temperature limit (ºC)
THN-DP-H14-122412S	12 * 24 * 12	Ultrafine glass fiber	99.99%@ 0.3um H14	9.2	1000	250	500	2.5	70
THN-DP-H14-242412S	24 * 24 * 12	Ultrafine glass fiber	99.99%@ 0.3um H14	18.5	2000	250	500	1.5	70
THN-DP-H14-243012S	24 * 30 * 12	Ultrafine glass fiber	99.999%@ 0.3um H14	23.1	2500	250	500	1.5	70
THN-DP-H14-12126S	12 * 12 * 6	Ultrafine glass fiber	99.999%@ 0.3um H14	2.2	250	250	500	1.5	70
THN-DP-H14-24246S	24 * 24 * 6	Ultrafine glass fiber	99.999%@ 0.3um H14	9	1000	250	500	1.5	70
THN-DP-H14-24486S	24 * 48 * 6	Ultrafine glass fiber	99.999%@ 0.3um H14	18.5	2000	250	500	1.5	70
THN-DP-H14-242412H	24 * 24 * 12	Ultrafine glass fiber	99.99%@ 0.3um H14	24	3400	330	600	2.6	70

Company Profile >Company Show
Thenow Purification Technology has focused on air filtration for many years: 16+ years for HVAC air filter and 21+ years for Industrial dedusting dust collector air filters. We hope to bring the world more clean air with quality and environmental friendly filters.
>Certificates and Test reports
Standard is a ruler for the filters from all over the world. We have been trying to meet the most strict standard. Our HVAC air filters have been certified by CE, SGS and tested according to EN779, EN1822, Ashare and the latest ISO16890. You can rest assured when make a decision to buy. Click here if you want to see details.
>8+ years exporting experience
We have been to Powtech In Nurnberg in 2014, Achema in Frankfurt in 2015, AHR in Chicago in 2018, Chilliventa in Nurnberg in 2018. And our filters have been to all over the world: Europe, Middle East area, Africa, South Asian area, South American area and North American area.
>Professional Packing and Container Loading
Packing is important especially for carboard frame disposable filters and HEPA filters with glassfiber filter media. So we are very careful with it.
