5 Layers 6 Layers 7 Layers High Quality Pneumatic Rubber Marine Airbag

5 Layers 6 Layers 7 Layers High Quality Pneumatic Rubber Marine Airbag

US$2,500.00-15,000.00 5 Pieces (MOQ)

Basic Info.

Standard
CB/T3837
Application
Ship Launching And Ashoring
Customized
Customized
Condition
New
Product Name
Marine Rubber Airbag for Docking Ship Launching
Diameter
0.5m-2m
Length
5-20m
Color
Black
Layers
4-20layers
Transport Package
with Pallet or Other Standard Export Package
Specification
Dia 2*15m
Trademark
NYBON
Origin
Shandong
HS Code
4016950090
Production Capacity
500piece/Month

Product Description

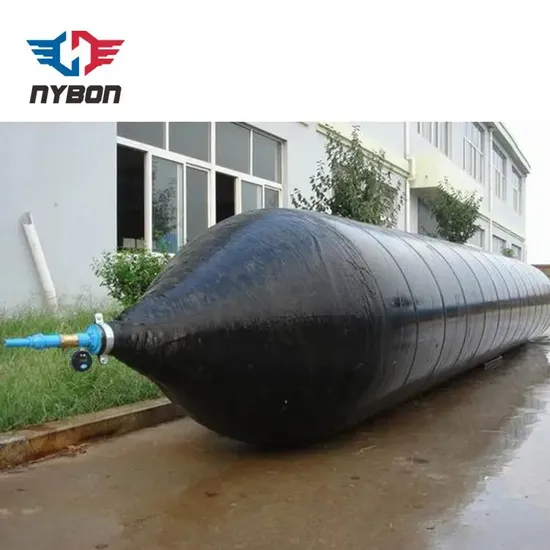

Marine rubber airbag for ship launching
Marine Rubber Airbag is China independent intellectual property rights of innovative products,the products are mainly
applied to ship launching and landing,weight lifting,handling,installation of underwater buoyancy aid etc. Nowadays,
Marine rubber airbags are widely used in the world.The products are less limited by space,no large mechanical
equipment,can shorten the working period and save the unnecessary cost.Through years of development practice,
marine rubber airbag is become more safety effective and green environment protection.

Detail Pictures:

Diameter
 Working pressure
 Working height
Bearing capacity per unit length
KN/m ton/m

D=1.0M
0.20Mpa

 0.6m
 125.76
 12.82
0.5m
 157.16
 16.02

D=1.2m
0.17Mpa

 0.7m
 133.61
 13.62
0.6m
 160.30
 16.34
D=1.5m
0.13Mpa
0.9m
 122.63
 12.5
0.8m
 143.03 14.58
0.7m
 163.43
 16.66
D=1.8m
 0.11Mpa
 1.1m
 120.96
 12.33
1.0m
 138.22
 14.09
0.9m
 155.59
 15.86
0.8m 172.85 17.62
0.7m 190.22 19.39
D=2.0m
0.10Mpa
1.2m 125.76 12.82
1.1m 141.46 14.42
1.0m
 157.16
 16.02
0.9m
 172.85
 17.62
0.8m 188.64
 19.23
