92% Energy-Efficient 230V to 400V Voltage Transformation Device 15kw 20kw Power Converter

Product Description

92% Energy-Efficient 230V to 400V Voltage Transformation Device 15kw 20kw power converter Company Profile Bangzhao Electric Co.,Ltd is a company who was established in 2008 and specialized in developing and supplying of power products. The high performance of its products stems from the cutting-edge technology developed by the domestic top 100 engineers. During the past 10 years, we have been providing the best system solutions of Life PO4 battery pack cabinet,Boat inverter ,Car inverter,Solar inverter,Wind-Solar Hybrid inverter,lithium battery charger,PWM/MPPT solar charge controller,PV pump inverter,Explosion-proof inverter,DC combiner box,AC to DC battery cabinet ,Single Phase to 3 Phase Converter,Lithium battery storage system etc. to customers, it is widely applied in the industry of solar energy,wind power,water power,car,ship,train,hospital, aviation,automation,etc.
Product Description BZT series Marine Generator Voltage Regulator , adopted AC-DC-AC circuit structure and SVPWM modulation control technology, which can convert ordinary single-phase power to industrial three-phase power. Two phase to three phase ,3 phase to 3 phase and so on.After through BZT series power phase converter power conversion, the output is standard pure sine wave, the harmonic distortion rate (THD) is less than 2%, totally meet the national standards power quality, applicable to all types of load.
The BZT series power phase converter, the phase angle is 120 degrees, the harmonic distortion rate of less than 2%, fully meet the national electric power quality standards, applicable to various types of load (such as: welding machine, welding machine, electric hoist, roll gate, packing machine, chocolate coating machine, lathe, motor, elevator, inverter compressor, debugging three-phase load).
BZT series power phase converter to solve electric power in some areas because of the inconvenience to the production, but also solve some for the limitation of the site can not apply to the three-phase power demand or frequency conversion.
Product Parameters Bangzhao 92% Energy-Efficient 230V to 400V Voltage Transformation Device 15kw 20kw power converter

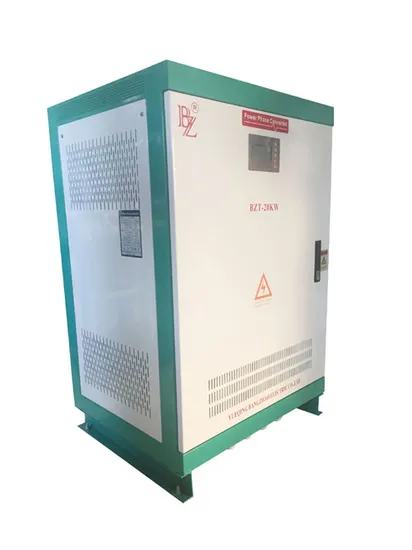

Model		BZT-20KW
Isolation mode		Low Frequency Transformer
AC Input	Rated voltage (Vac)	230V
	Rated current(A)	87A
AC Output	Rated output power	20KW
	Output waveform	Pure Sine Wave
	Rated Voltage	400VAC±3%
	Phases	3 phase 4 wire
	Rated current(A)	28.8A (phase current)
	Frequency	50Hz or 60Hz
	Rated output voltage range (V)	380/400/415/440VAC optional
	Power Factor(PF)	0.99
	Overload Ability	150%, 5 seconds
	Efficiency	>92%
	Waveform distortion rate (THD)	<3% linear load
	Dynamic Response (0 to 100% load)	5%,≤50ms
	Display	LCD
	Running mode	Working continuously
	Electrical insulation properties	2000Vac, 1 Minute
Protection Function	Protection	Input reverse polarity, under voltage, overvoltage, output over-current, short circuit, overheating etc.
	Cooling method	Fan-cooled
	Short-circuit protection	No automatic recovery, need to restart the machine
Working environment	Noise ( 1 meter)	≤50dB
	Degree of protection	IP20(indoor)
	Working Altitude(m)	≤2000
	Working temperature	-25~+55ºC
	relative humidity	0~90%,non-condensing

Above parameter only for reference ,could be custom made to user specifications.
